Product Description

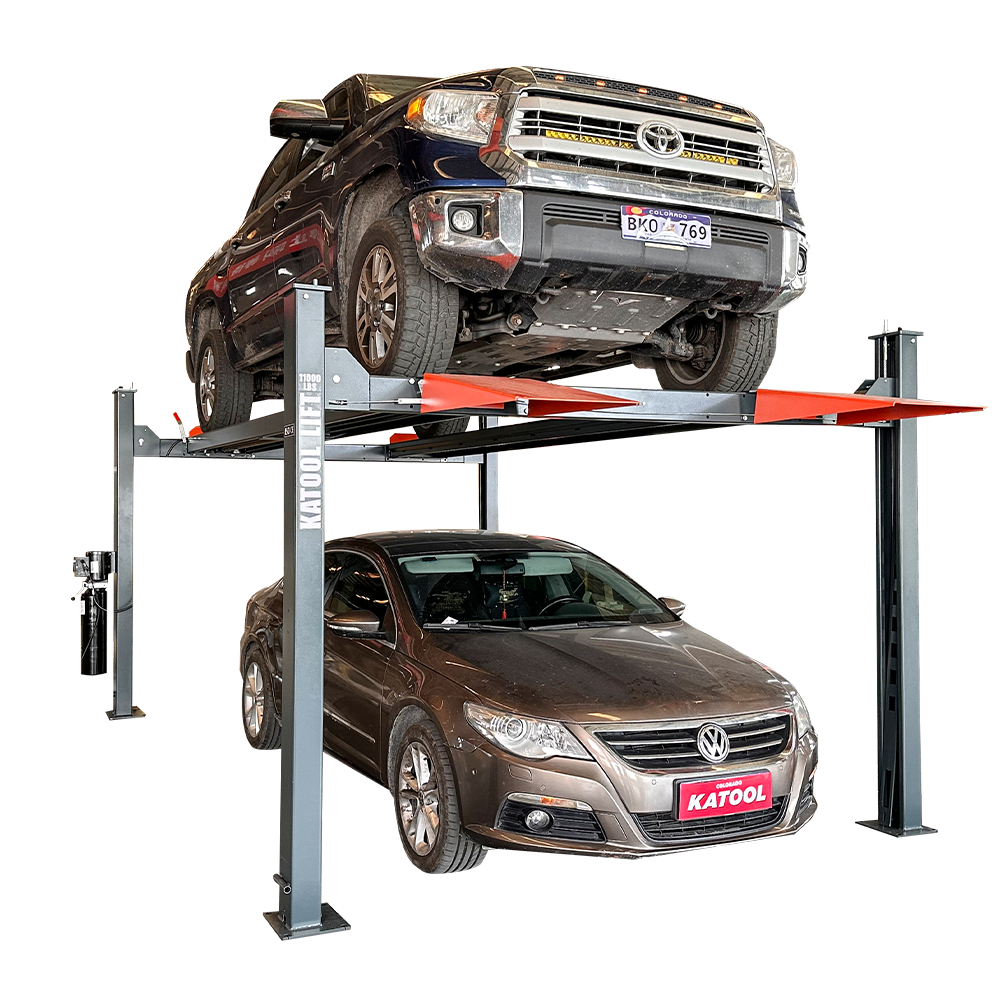

The KT-4H110 is the four-post lift for shops that need to actually work under the vehicle, not just park above it. 84.25 in of lift height gives most techs standing room, and the 229.73 in overall length handles long-wheelbase trucks and vans. Still runs on 110V single-phase.

Key Features

  • 11,000 lb Capacity - Cars, light trucks and SUVs including three-quarter-ton pickups.
  • 84.25" Max Lift Height - Comfortable standing room underneath for real service work.
  • 229.73" Overall Length - Fits long-wheelbase trucks and commercial vans.
  • Mechanical Locking System - Secure holding at every working height.
  • 110V Single-Phase Power - Simple installation, no service upgrade in most shops.
  • Three Drip Trays, Jack Tray and Ramps Included

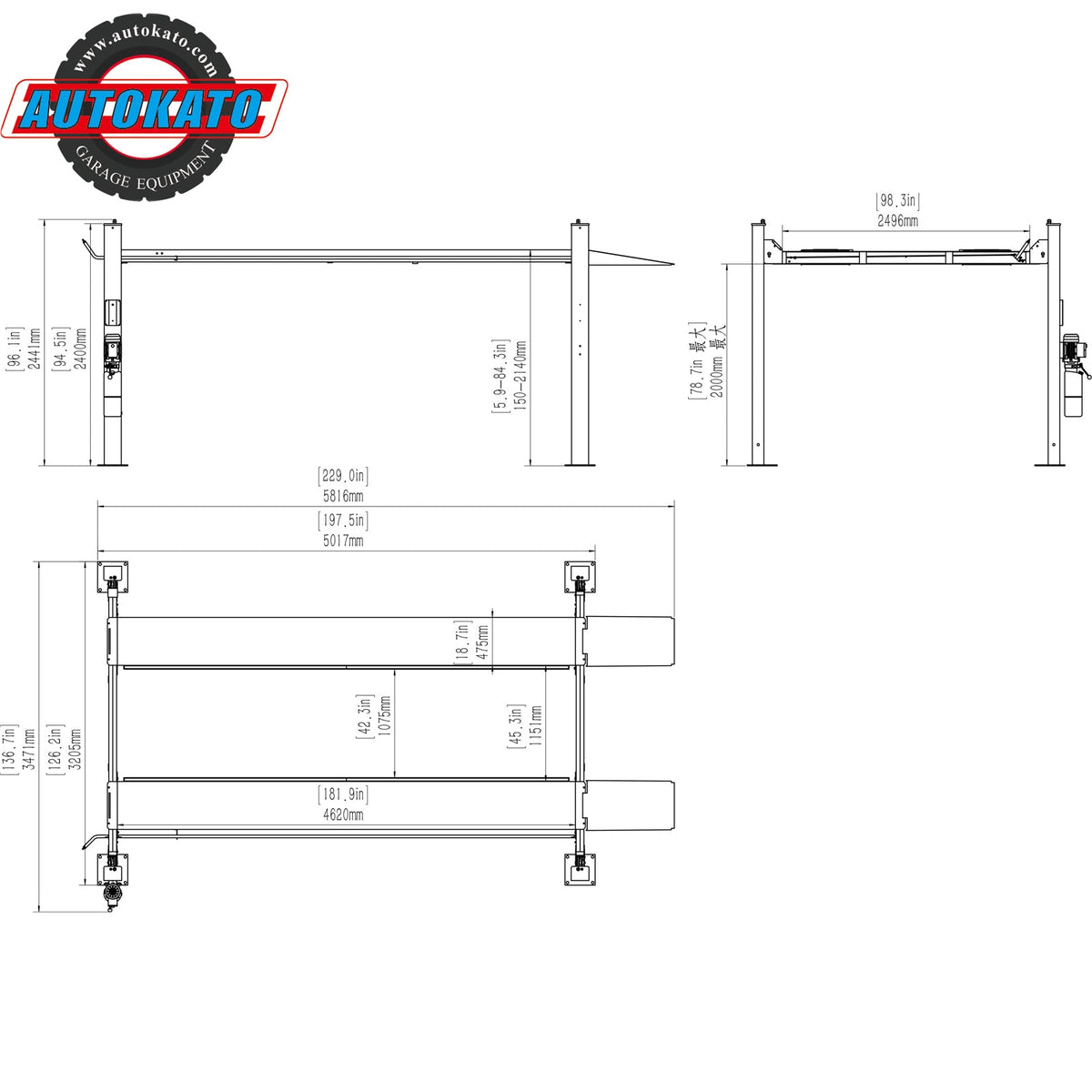

Specifications

Feature Specification
Lifting Capacity 11,000 lb / 4,990 kg
Max. Lifting Height 84.25" / 2,140 mm
Lifting Time 83s up / 40s down
Height of Posts 94.88" / 2,410 mm
Overall Width 126" / 3,200 mm
Overall Length (with ramps) 229.73" / 5,835 mm
Inside Columns Width 112.81" / 2,865 mm
Minimum Runway Height 6.2" / 157 mm
Motor 110V / 60Hz / 1PH
Net Weight 2,116 lb / 960 kg
Included 3 drip trays, 1 jack tray, ramps

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
