Product Description

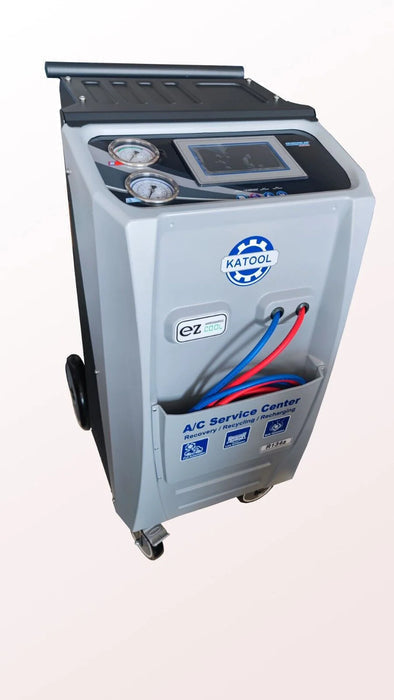

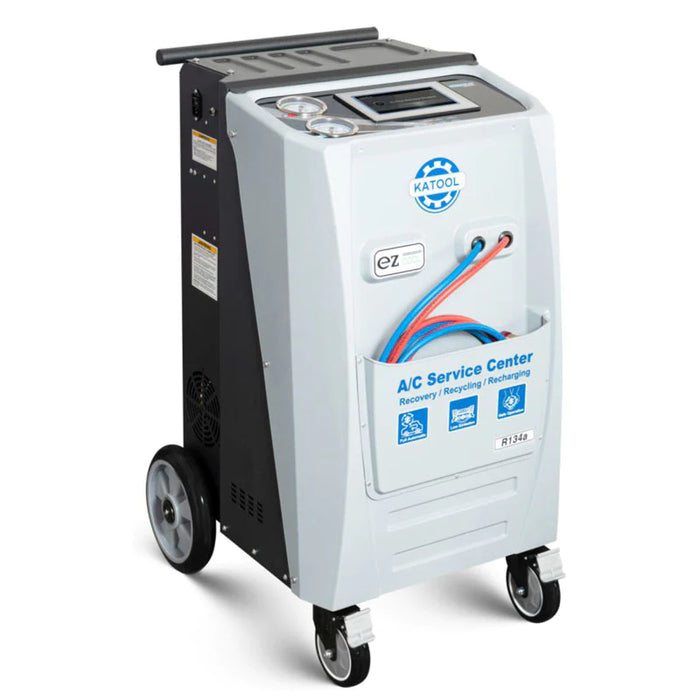

Katool DUAL AC1800 – Fully Automatic R-134A A/C Recovery, Recycle & Recharge Machine

The Katool AC1800 is a fully automatic 3-in-1 A/C service machine designed for professional automotive shops. The DUAL AC1800 handles R-134a refrigerant — recovering, recycling, and recharging with a single touch of the 7-inch touchscreen display. Built for high efficiency and precision, the AC1800 recovers up to 95% of refrigerant in under 30 minutes and charges to within ±0.5 oz accuracy.

Key Features

  • Fully Automatic 3-in-1 Operation: Recovers, recycles, and recharges R-134a with a simple touch — walk away and return when complete

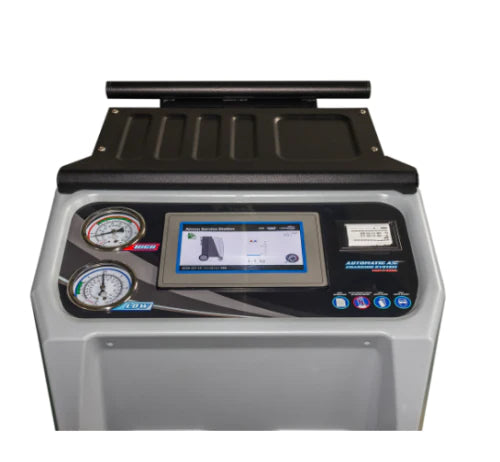

  • 7" High-Quality Touchscreen Display: Intuitive interface with guided prompts for easy operation
  • High-Efficiency Performance: Recovers up to 95% refrigerant in under 30 minutes; charges within ±0.5 oz accuracy
  • Dual-Stage Vacuum Pump: Powerful 3.6 CFM vacuum system for thorough system evacuation
  • Accurate Loadcell Sensors: Precise measurement for both refrigerant and oil (1g accuracy)
  • Spin-On Filter-Drier: 175 lb capacity with easy replacement for clean system operation
  • Heavy-Duty Compressor: 1/3 HP sealed and thermal-protected for durability and long-term reliability
  • Durable & Compact Design: Shop-friendly footprint built for mobile or fixed garage environments

AC1800 Technical Specifications

Model Katool DUAL AC1800
Refrigerant Type R-134a
Voltage 110V AC, 60 Hz
Recovery Performance ≥95% in <30 minutes
Charge Accuracy ±0.5 oz (15 g)
Recovery Speed 39.7 lbs/h (18 kg/h)
Charge Speed 2.2 lbs/min (1 kg/min)
Vacuum Pump Dual-Stage, 3.6 CFM
Compressor 1/3 HP, Hermetically Sealed, Thermal Protected
Hose Length 9.8 ft (3 m) SAE J2788
Operating Temp Range 41°F – 122°F (5°C – 50°C)

Applications

  • Automotive A/C system service and repair shops
  • Fleet vehicle maintenance facilities
  • HVAC/automotive hybrid service centers
  • R-134a refrigerant recovery and environmental compliance

Warranty

All Katool products sold through Site and Supply include a comprehensive warranty. The Katool DUAL AC1800 is backed by a 12-month manufacturer's warranty covering defects in materials and workmanship under normal operating conditions. This covers the compressor, vacuum pump, touchscreen, sensors, and all mechanical components. Extended warranty options are available. For claims or support, contact us at support@siteandsupply.com or call +1 (567) 361-3447.
