Product Description

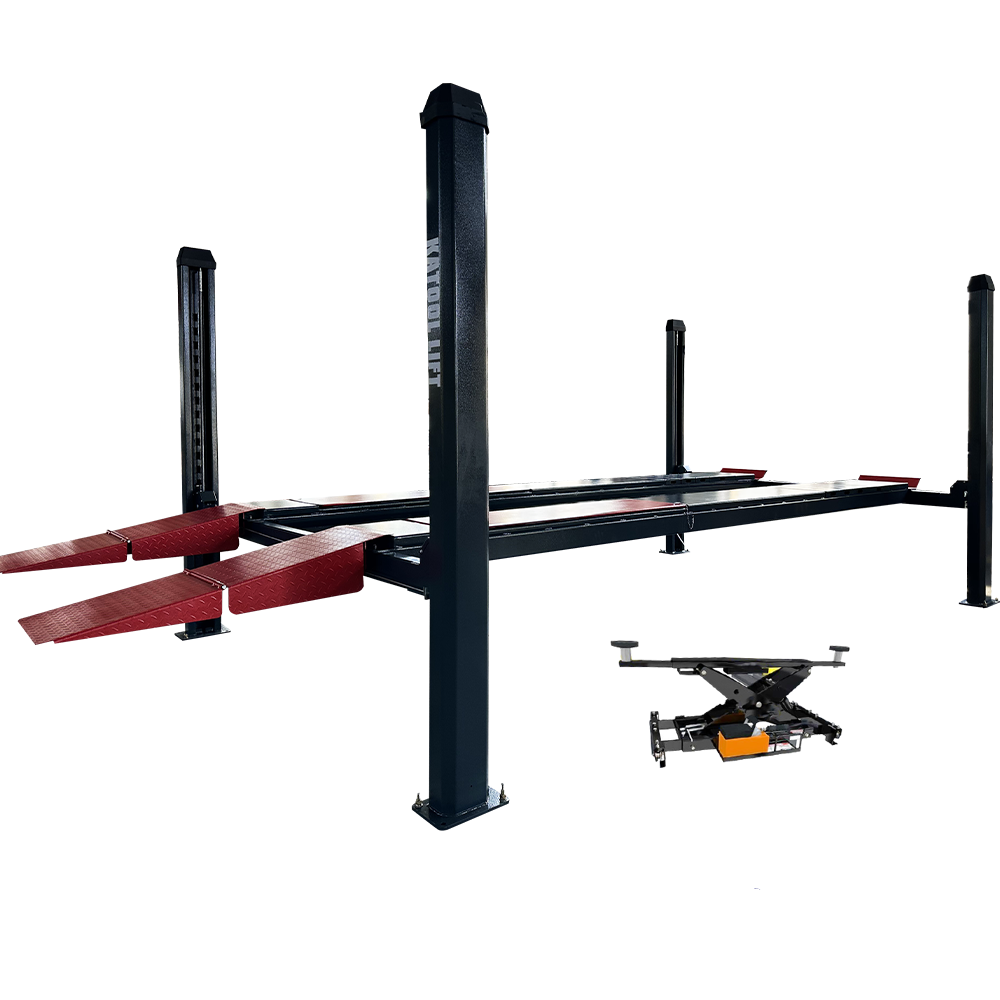

The KT-4H120X is an alignment-capable four-post at 12,000 lbs with nearly 87 in of rise. If you are adding alignment as a profit center, this is the platform - heavy-gauge columns and runways, wide column spacing, and enough height that your tech is not crouching through a four-wheel alignment.

Key Features

  • 12,000 lb Rated Load - Cars, trucks and SUVs including heavier fleet units.
  • 86.9" Lifting Height - Full standing clearance underneath.
  • 83 Second Raise Time - Keeps bays turning during a busy day.
  • 112.81" Between Columns - Wide spacing for a broad range of vehicle sizes.
  • Heavy-Gauge Steel Runways - Built for daily commercial alignment duty.
  • Alignment-Ready Platform - Suits professional shops, fleet service and serious home garages.

Specifications

Feature Specification
Rated Load 12,000 lb
Lifting Height 86.9" / 2,208 mm
Raising Time <= 83 seconds
Lowering Time >= 40 seconds
Net Weight 3,373 lb / 1,530 kg
Width Between Columns 112.81" / 2,865 mm
Machine Width 135.2" / 3,435 mm
Machine Height 94.88" / 2,410 mm
Shipping Dimensions 209" x 36" x 26"
Shipping Weight 3,440 lb
Power 220V

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
