Product Description

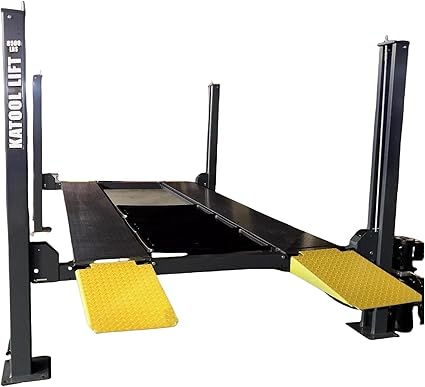

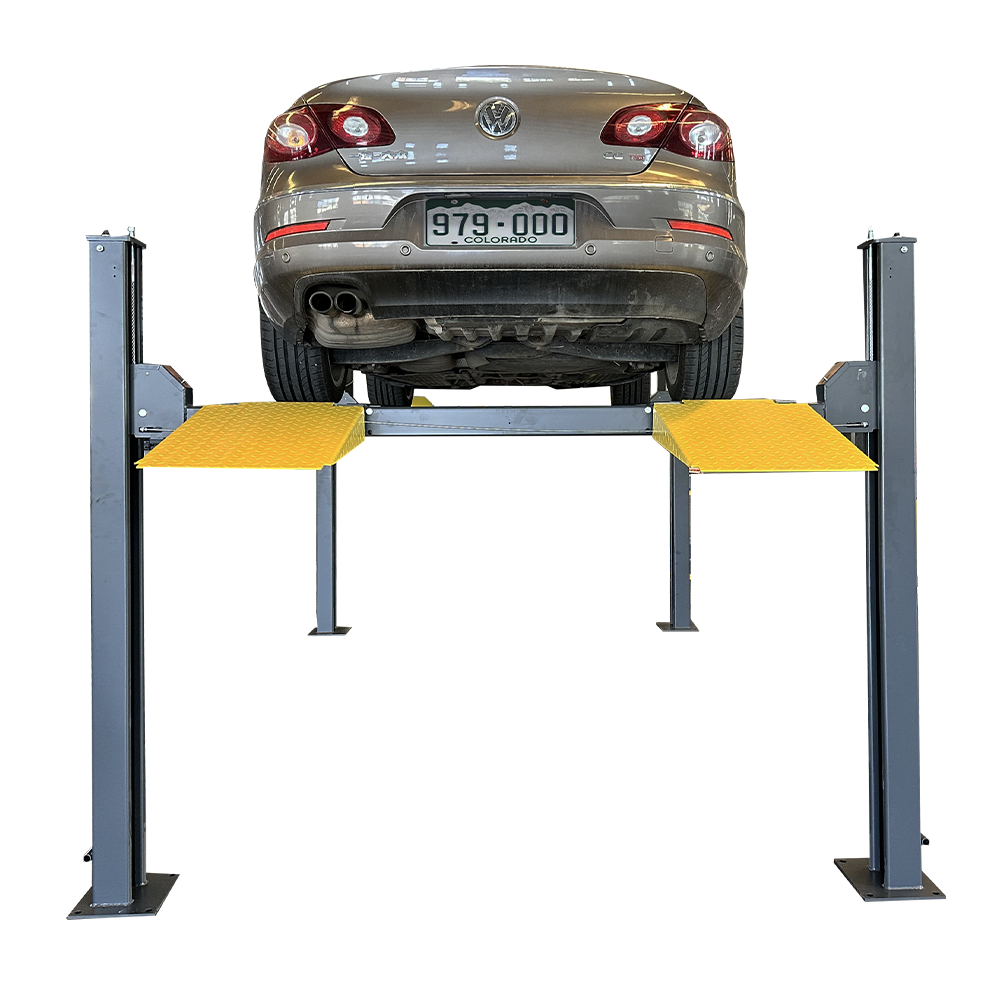

The KT-4H850 is the four-post lift we recommend for home garages and small shops that need storage more than they need service height. It ships complete - caster kit, three drip trays and a jack tray are in the box, not on the upsell list - and it runs on standard 110V single-phase, so no electrical work is required in most garages.

Key Features

  • 8,500 lb Capacity - CE certified and proof-tested at 115% dynamic and 150% static load.
  • Runs on Standard 110V - No dedicated 220V circuit needed. 220V optional.
  • Caster Kit Included - Roll the entire lift to reposition it. Not an add-on purchase.

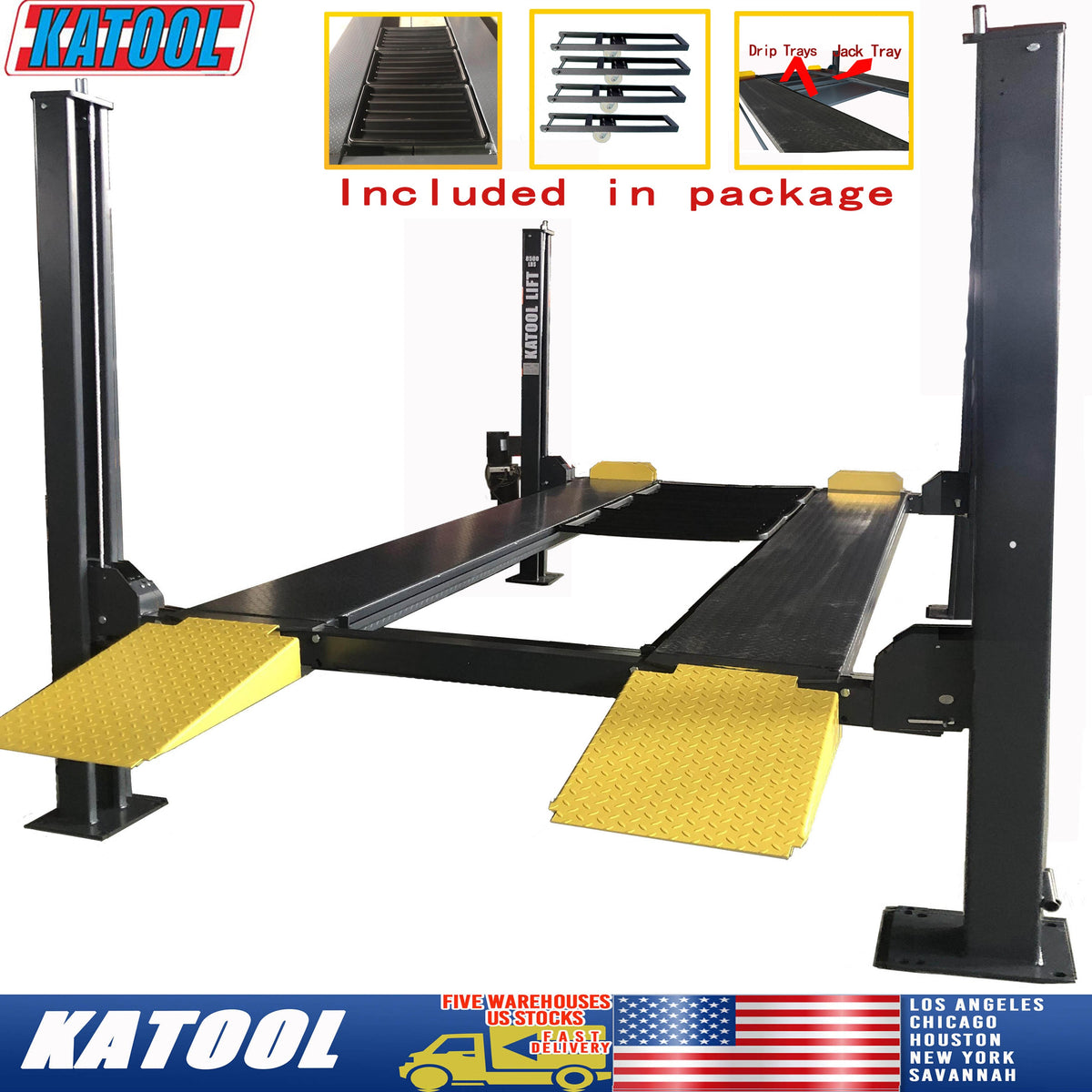

  • Three Drip Trays + Jack Tray Included - Ready for storage duty out of the crate.
  • Four Mechanical Locks, Single-Point Release - Plus a secondary slack-cable safety lock.
  • Flexible Power Column Mounting - Mounts on either side, front or rear to suit your bay.

Specifications

Feature Specification
Lifting Capacity 8,500 lb / 3,850 kg
Max. Lifting Height 70.87" / 1,800 mm
Lifting Time 75s up / 40s down
Height of Posts 83.66" / 2,125 mm
Overall Width 107.95" / 2,742 mm
Overall Length (with ramps) 198.43" / 5,040 mm
Inside Columns 94.72" / 2,406 mm
Min. Runway Height 4.76" / 121 mm
Motor 110V / 60Hz / 1PH (220V optional)
Net Weight 1,820 lb / 826 kg
Included Caster kit, 3 drip trays, 1 jack tray
Certification CE Approved (115% dynamic / 150% static)

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
