Product Description

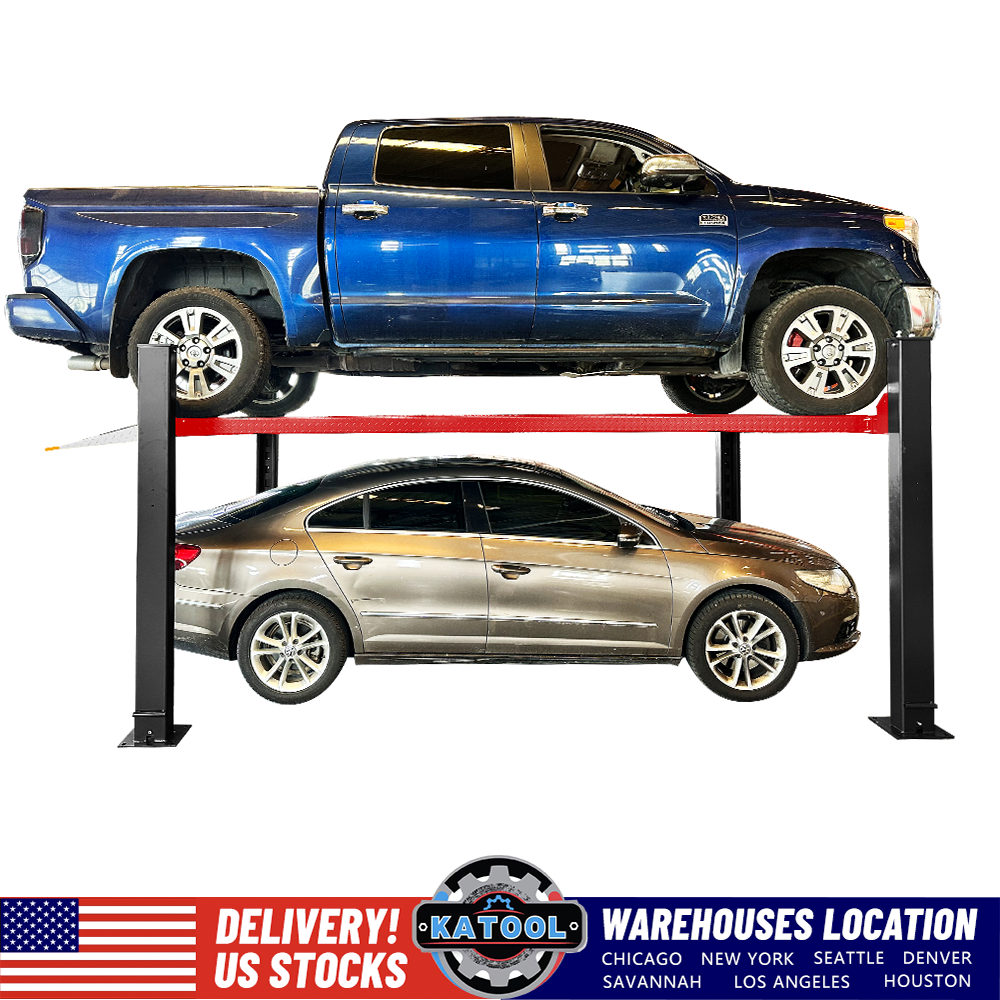

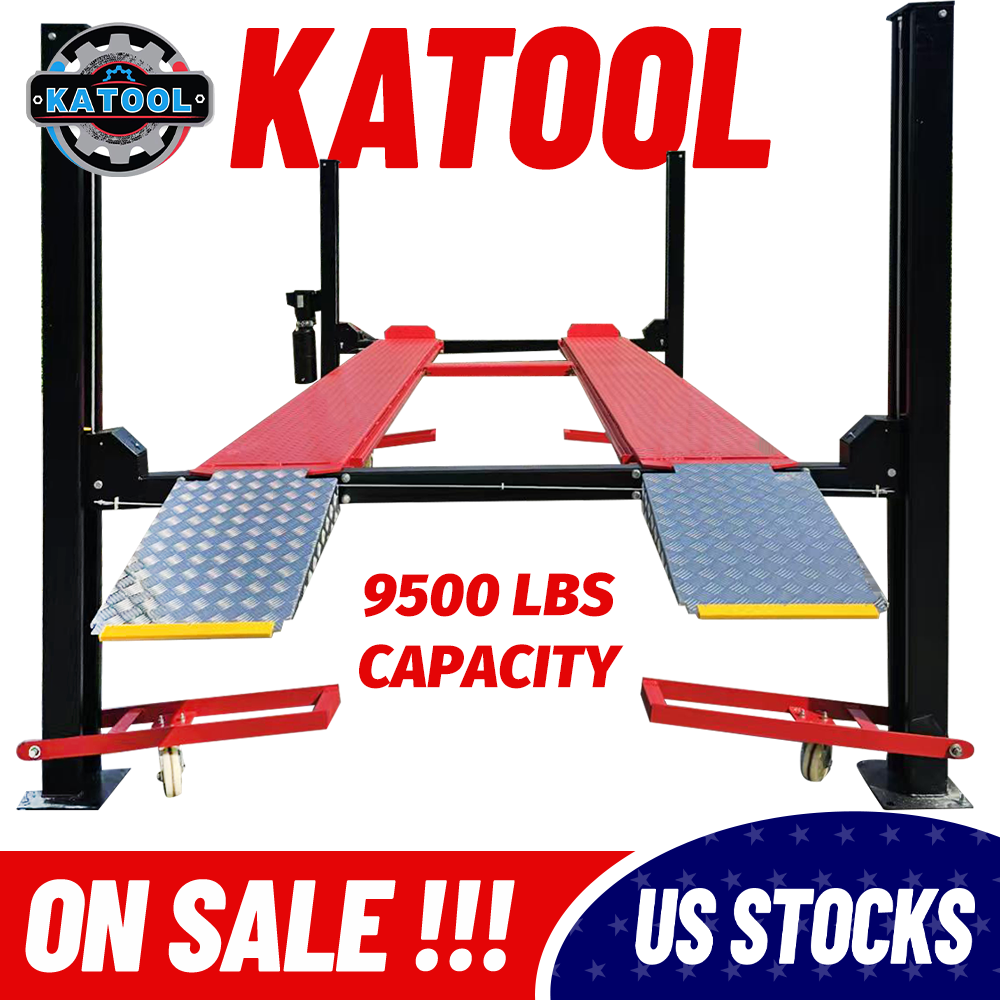

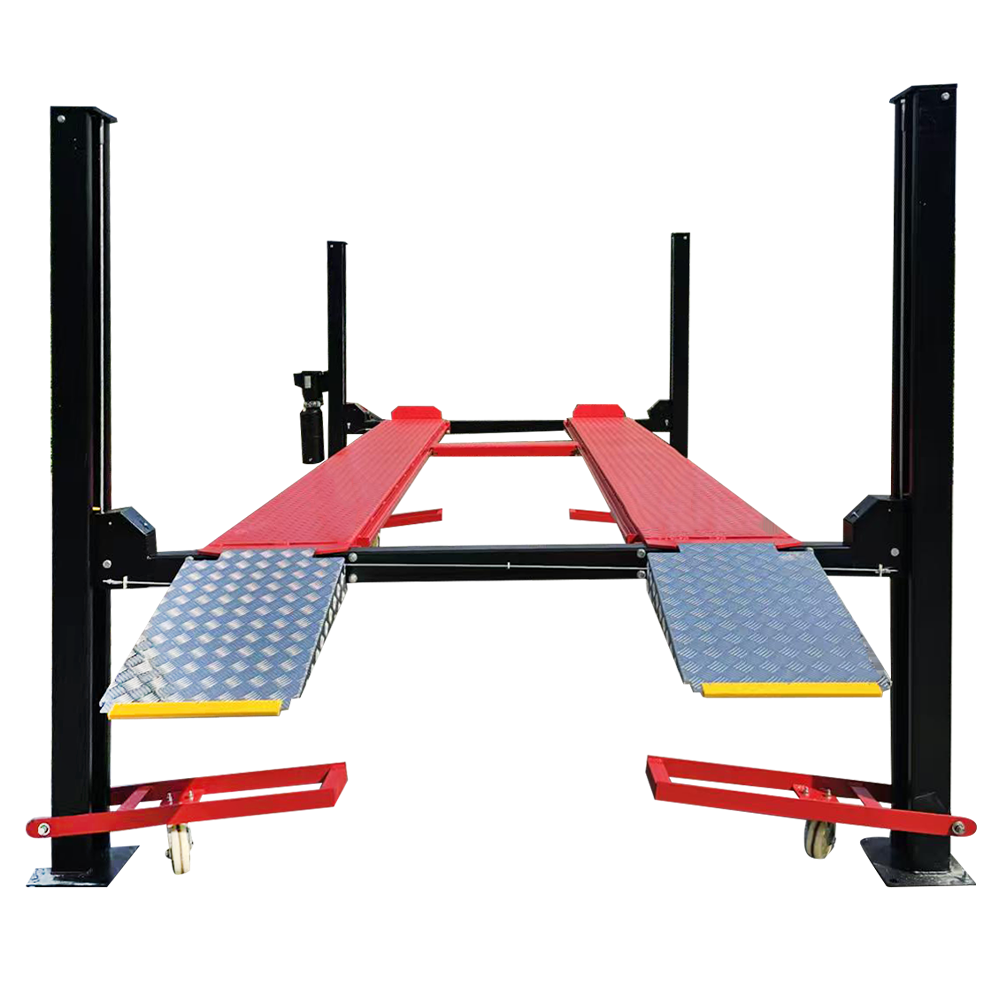

The KT-4H950 splits the difference between the 8,500 lb and 11,000 lb four-posts: enough capacity for a full-size pickup, still running on a standard 110V circuit with a 30A breaker. Casters, aluminum ramps, a jack tray and drip trays are all included, and it reaches full height in about 50 seconds.

Key Features

  • 9,500 lb Capacity - Cars, SUVs, trucks and performance vehicles.
  • 110V / 3.0 HP Motor - Standard single-phase service with a 30A breaker.
  • ~50 Second Lift Cycle - Smooth hydraulics with minimal vibration.
  • Multi-Position Mechanical Locks - Safe for both service work and long-term storage.
  • Diamond-Plate Non-Slip Runways - Traction driving on and while elevated.
  • Complete Accessory Package - Casters, aluminum ramps, jack tray and drip trays included.

Specifications

Feature Specification
Lifting Capacity 9,500 lb / 4.3 T
Maximum Lifting Height ~84.5" (~79" clearance)
Lifting Time ~50 seconds
Overall Length 189" (with baseplates)
Overall Width 113"
Width Between Columns 99"
Motor 110V, 3.0 HP (30A breaker)
Runway Surface Diamond-plate non-skid
Included Casters, aluminum ramps, jack tray, drip trays
Concrete Requirement Minimum ~4" at 3,000 PSI recommended

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
