Product Description

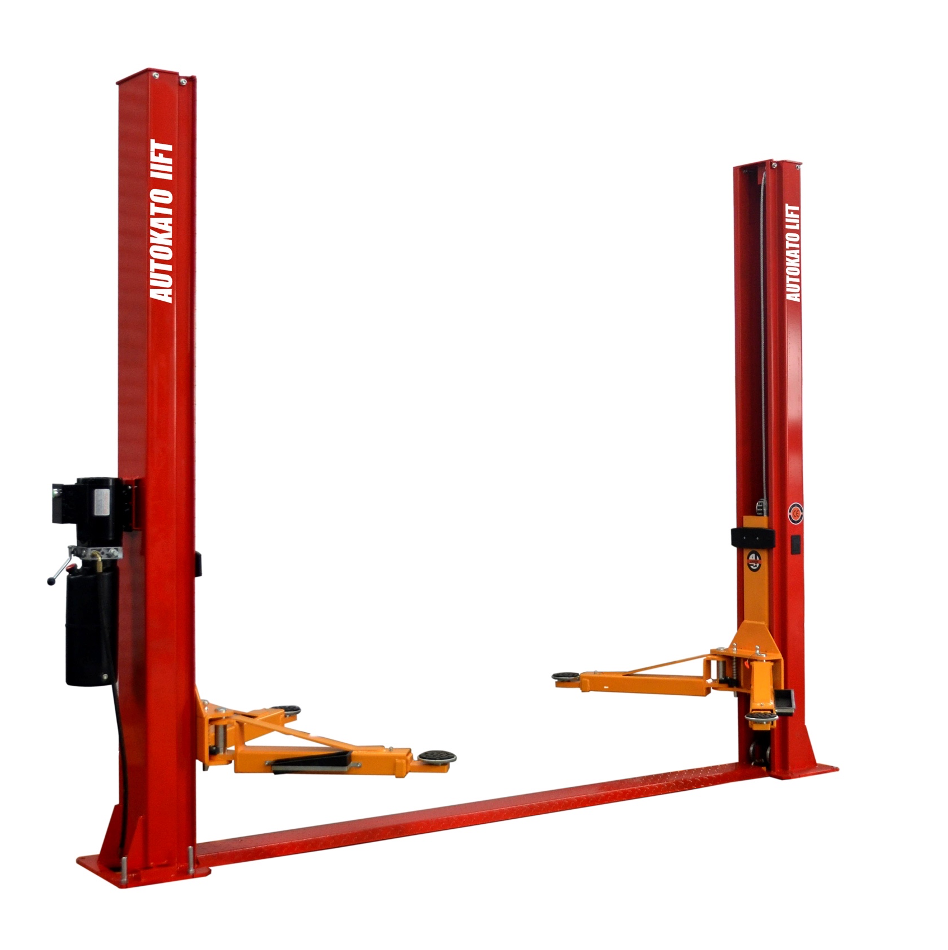

The Katool KT-H100 is the floor-plate two-post lift we point most independent shops toward when they are building out their first or second bay. At 10,000 lbs it covers the entire range of passenger cars, crossovers, SUVs and half-ton pickups that make up the bulk of everyday service work, and the floor-plate design means no overhead crossbar to fight with on low-ceiling installs.

Key Features

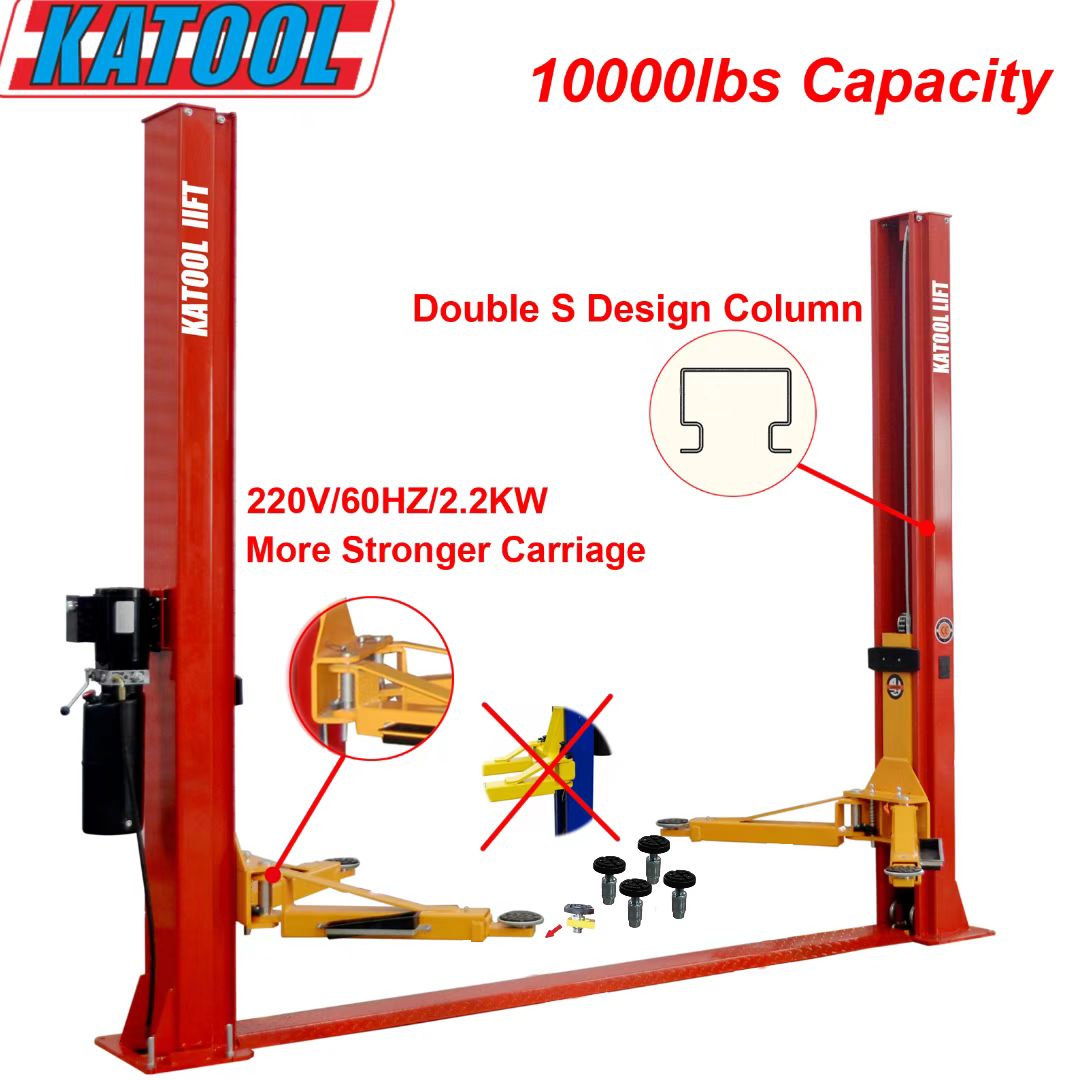

  • 10,000 lb Capacity - Covers sedans, crossovers, SUVs and half-ton pickups without straining the columns.
  • Floor-Plate Design - Hydraulic lines and equalization cables route through a floor channel, so there is no overhead bar. Ideal for garages with limited ceiling height.
  • Twin Chain-Drive Cylinders - Balanced, synchronized travel on both columns for even lifting under load.

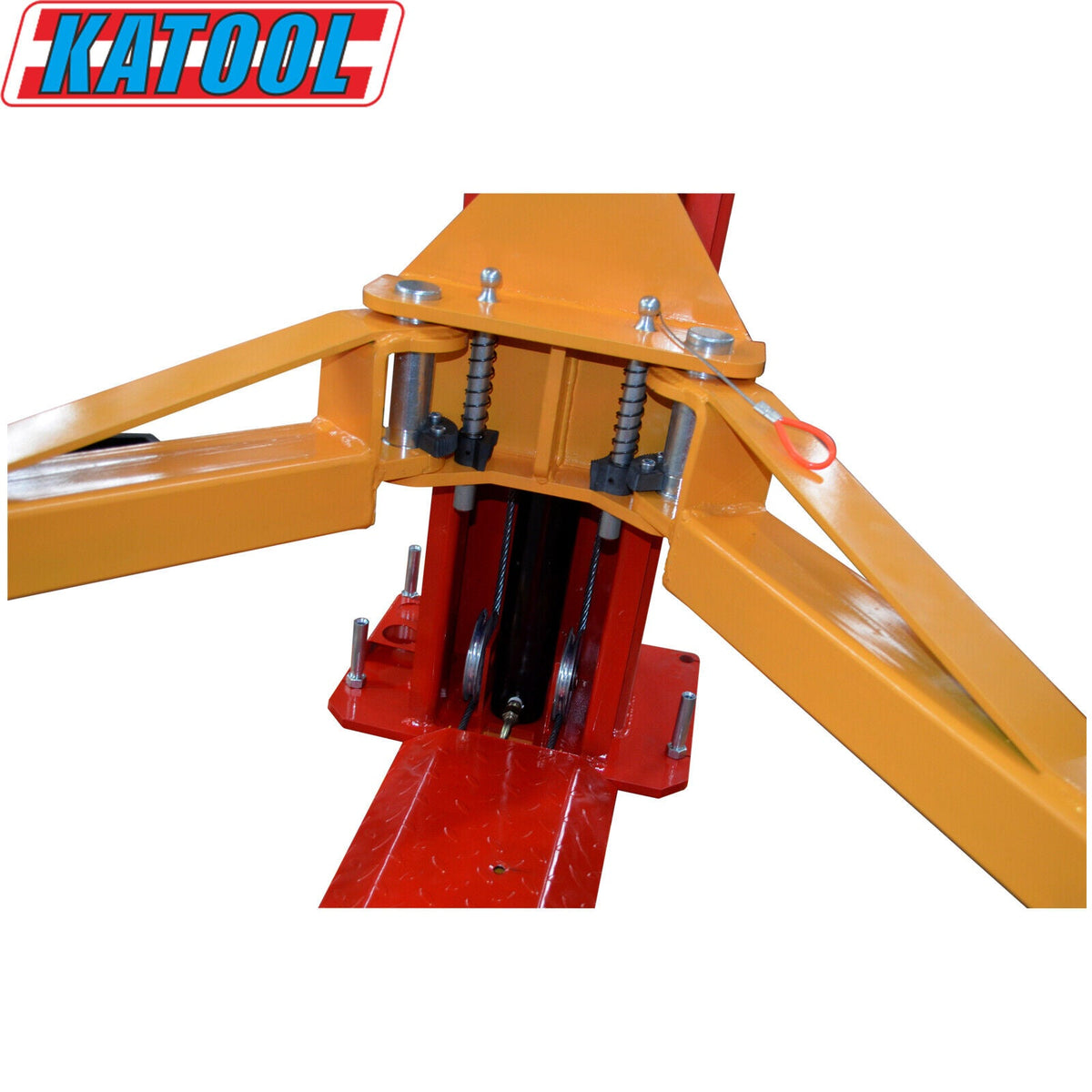

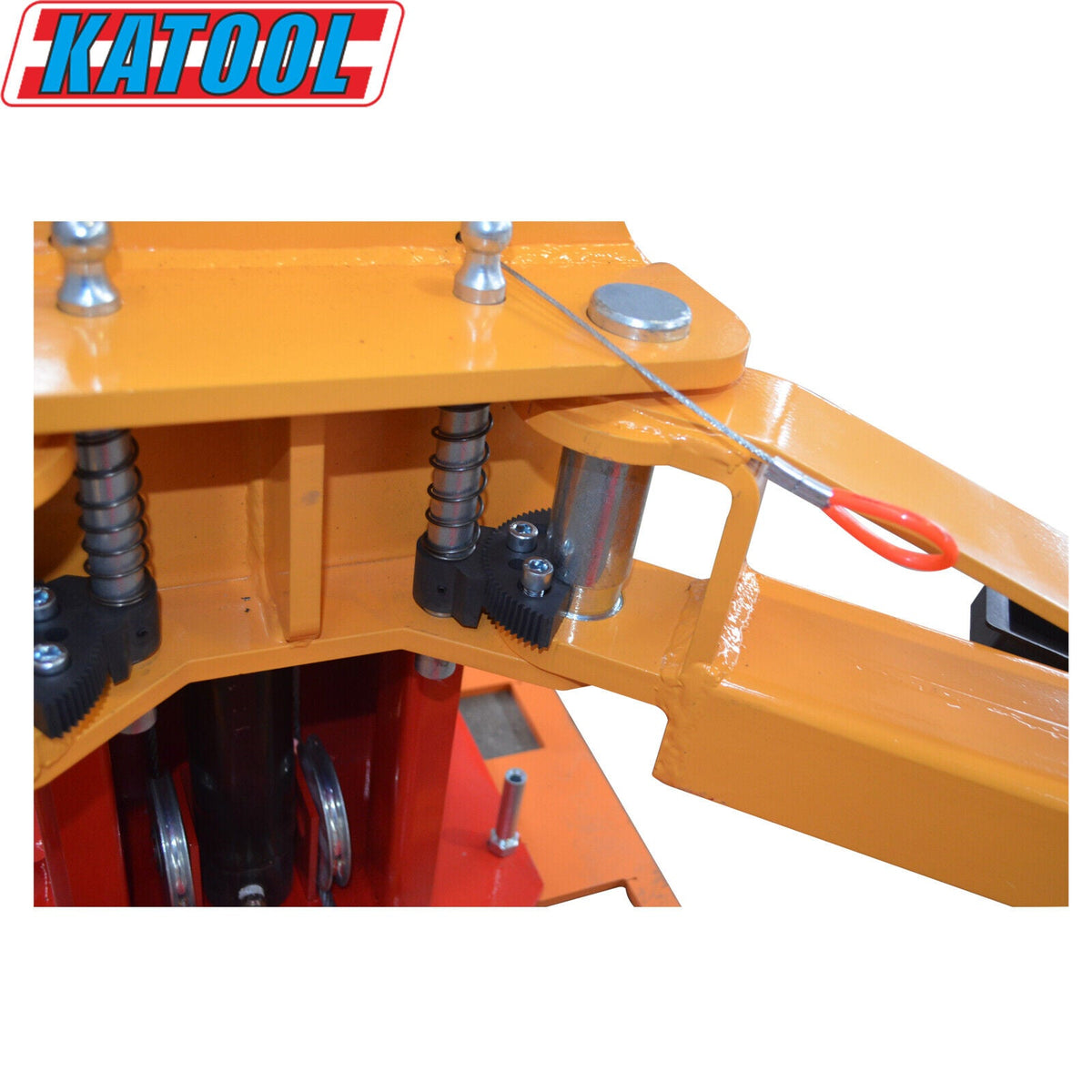

  • Dual-Side Lock Release - Safety locks release manually from either column so you are never walking around the vehicle mid-job.
  • 2-Stage Symmetric Arms - 30.75 in to 50.5 in reach with screw-on pads and a height extension adapter set included.
  • CE Certified - Proof-tested at 115% dynamic and 150% static load.

Specifications

Feature Specification
Lifting Capacity 10,000 lb / 4,500 kg
Max. Lifting Height 70.75" / 1,800 mm
Minimum Pad Height 4.25" / 110 mm
Overall Height 110.25" / 2,800 mm
Overall Width 142.25" / 3,614 mm
Inside Column Width 110.25" / 2,800 mm
Drive-Through Clearance 94.5" / 2,400 mm
Arm Reach (Front/Rear) Min 30.75" / Max 50.5" (2-stage)
Motor 220V / 60Hz / 1PH / 2.2 kW
Net Weight ~1,256 lb / 570 kg
Certification CE Approved (115% dynamic / 150% static)

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
