Product Description

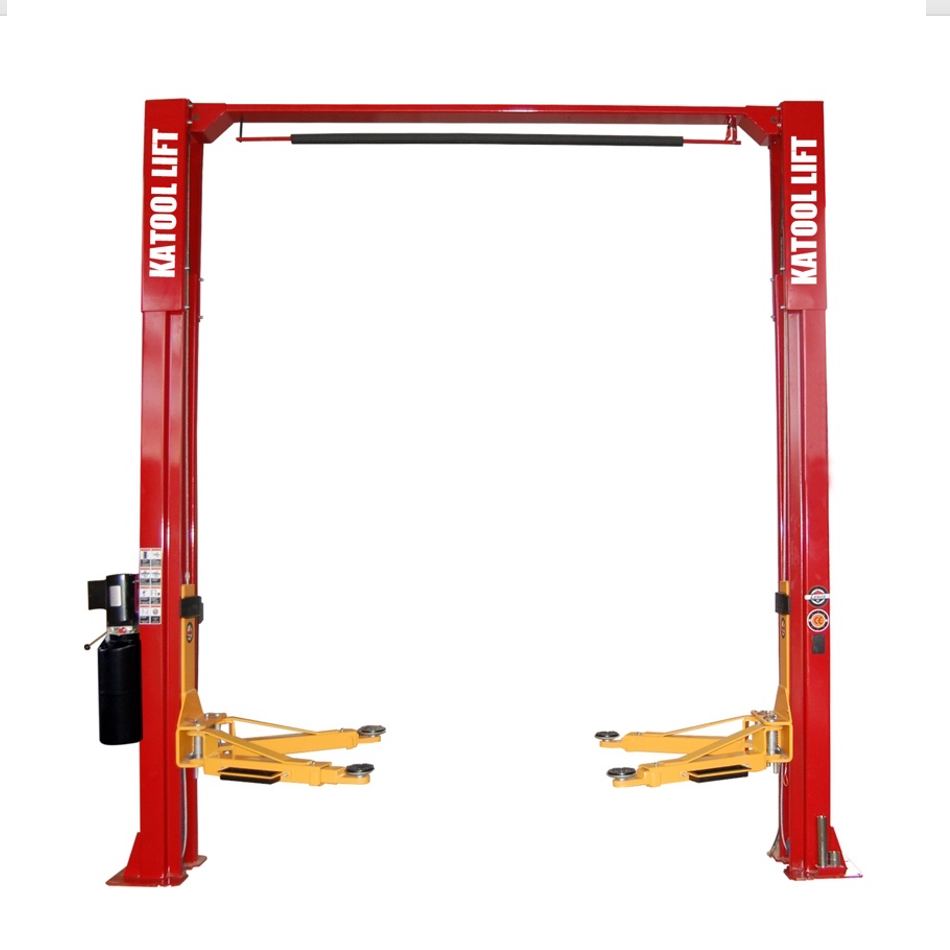

Clear-floor is what most working shops actually want, and the KT-M110 is the most affordable way into it. Nothing crosses the bay floor - no plate, no channel, no trip hazard - so creepers, jack stands and transmission jacks move freely under the vehicle. At 11,000 lbs it handles the full mix of cars, SUVs, vans and light trucks.

Key Features

  • Clear-Floor Symmetric Design - Overhead routing keeps the bay floor completely unobstructed.
  • 11,000 lb Capacity - Cars through light trucks with margin to spare.
  • Dual Chain-Drive Cylinders - Balanced, even lifting on both columns.
  • Overhead Safety Shutoff Bar - Stops over-travel before a roof meets the ceiling.

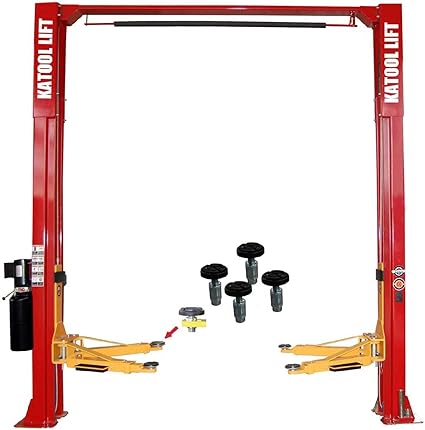

  • Extension Adapters Included - +30 mm and +120 mm adapters cover a wide range of factory lift points.
  • Shop-Ready Extras - Rubber door-protection pads, foot guardrails and an integrated tool tray.

Specifications

Feature Specification
Rated Capacity 11,000 lb / 5,000 kg
Max. Lifting Height 70.75" / 1,800 mm
Minimum Lift Pad Height 4.25" / 110 mm
Overall Height 141.25" / 3,587 mm
Overall Width 142.25" / 3,614 mm
Inside Column Width 110.25" / 2,800 mm
Outside Column Width 128" / 3,250 mm
Drive-Through Clearance 94.5" / 2,400 mm
Arm Reach (Front/Rear) Min 30.75" / Max 50.5" (2-stage)
Motor 220V / 60Hz / 1PH / 2.2 kW
Net Weight ~1,367 lb / 620 kg
Certification CE Certified (115% dynamic / 150% static)

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
