Product Description

The KT-M150D is the top of Katool's two-post range at 15,000 lbs. Direct-drive cylinders, a 4 HP / 3 kW power unit and Q235/Q245 structural steel put this squarely in heavy-truck and commercial-fleet territory. Note the slab requirement - 5.9 in of 3,000 PSI concrete. If your floor does not meet it, budget for the pour before you budget for the lift.

Key Features

  • 15,000 lb Capacity - Heavy trucks, vans and commercial vehicles.

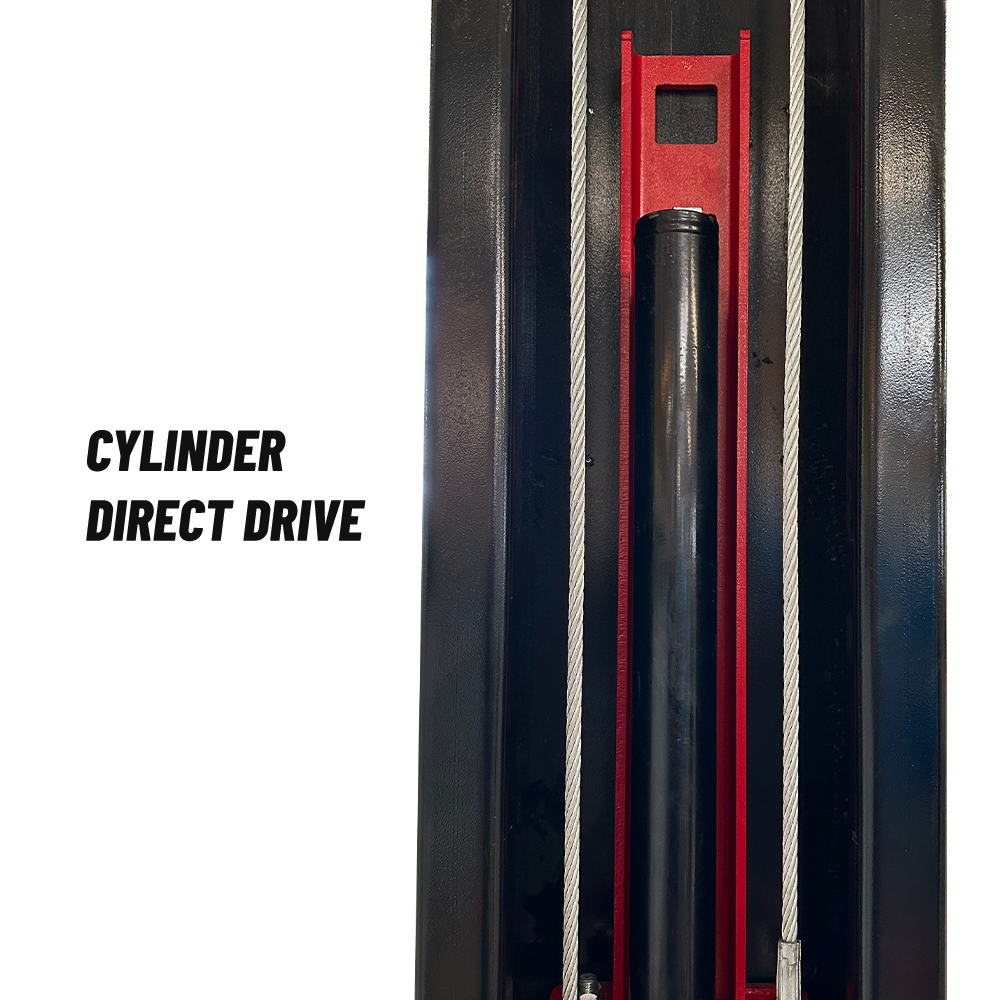

  • Direct-Drive Cylinders - Fewer moving parts, smoother cycles, less maintenance.
  • Single-Point Lock Release - Centralized lowering control.
  • 72.83" Max Lift Height - Full standing access to the underbody.
  • 4 HP / 3 kW Power Unit - Commercial-grade hydraulics on 220V / 60Hz.
  • Q235 / Q245 Steel Construction - Requires 5.9" of 3,000 PSI concrete.

Specifications

Feature Specification
Lifting Capacity 15,000 lb
Max Lifting Height 72.83"

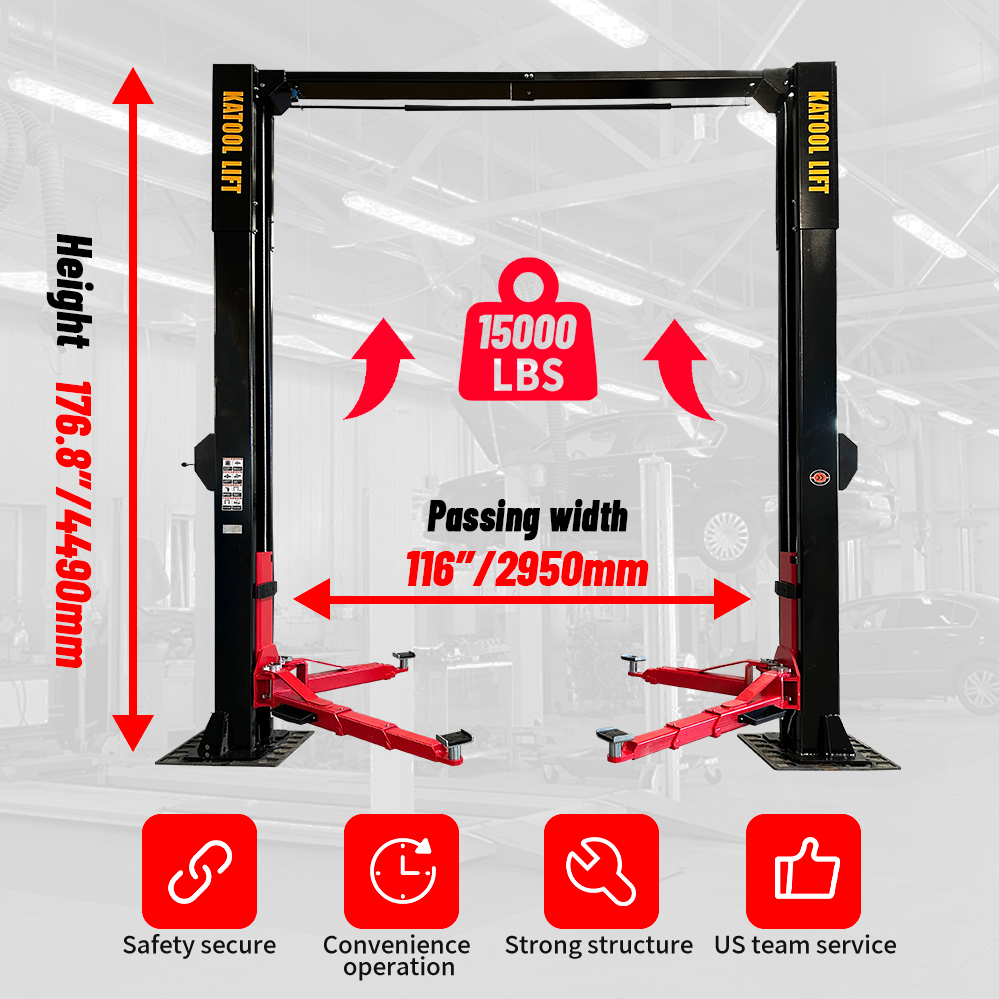

Overall Height 176.8"
Drive-Thru Clearance 116"
Motor 4 HP / 3 kW
Voltage 220V / 60Hz
Design Symmetric two-post
Drive Type Direct drive
Construction Q235 / Q245 steel
Concrete Requirement 5.9" at 3,000 PSI

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
