Product Description

The KT-X90E is the tall mid-rise in Katool's scissor line - roughly 47 in of lift versus the 40 in you get from the X85. Those seven inches change what the lift is good for: exhaust, driveline and transmission work become practical instead of awkward. Drive-up ramps, rubber blocks and a caster kit are included.

Key Features

  • 8,000 lb Capacity - Cars, SUVs and light trucks.

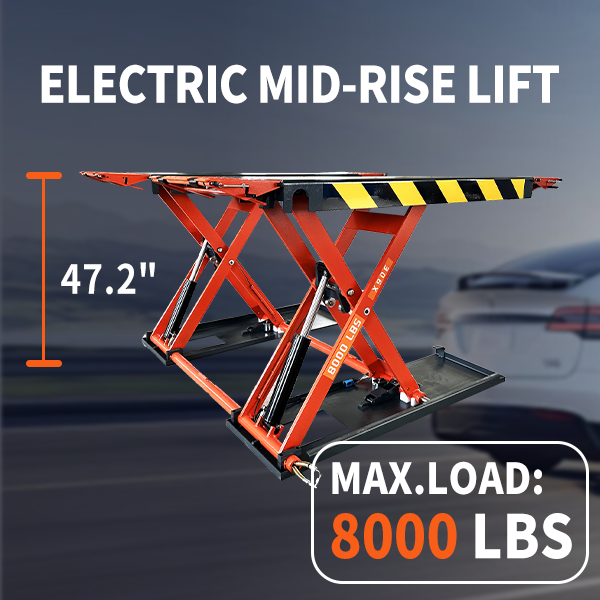

  • ~47" Maximum Rise - Tallest mid-rise in the Katool scissor line.
  • 30 Second Lift Time - Five mechanical lock positions across the range.
  • 110V (30A) or 220V - 24V safe control circuit with height limit switch.
  • Drive-Up Ramps and Caster Kit Included - Plus composite rubber lifting blocks.
  • CE Certified - 115% dynamic and 150% static load tested.

Specifications

Feature Specification
Lifting Capacity 8,000 lb / 3,500 kg
Max. Lift Height 47" (approx.)
Min. Lock Point 4.3"
Lifting Time 30 seconds
Platform Length 81.5"
Platform Width 20.1"
Width Between Platforms 32.2"
Rated Hydraulic Pressure 20 MPa
Power Requirements 110V (30A) or 220V, 60Hz, 1PH
Control System 24V safe control
Mechanical Lock Positions 5
Hydraulic Oil AW-46 (AW-32 for cold climates)

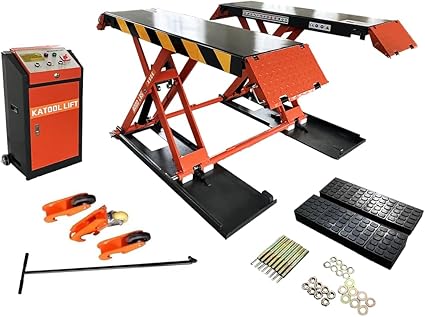

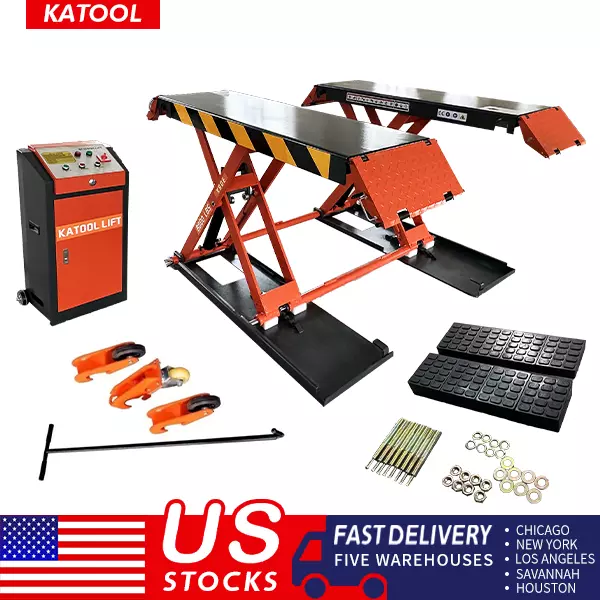

Included Drive-up ramps, rubber lifting blocks, caster kit
Certification CE (115% dynamic / 150% static)

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
