Product Description

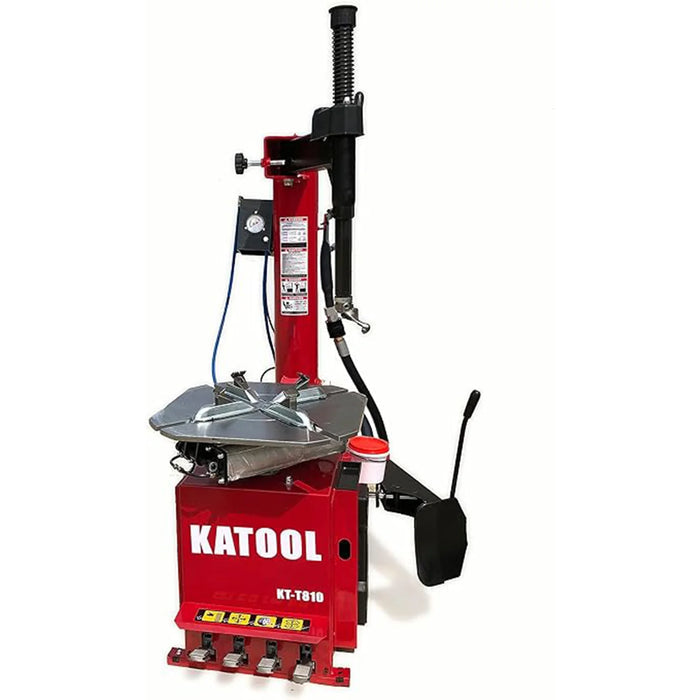

Katool Wheel Clamp Tire Changer Machine KT-T810 — Professional Wheel Clamp Tire Changer for Passenger Vehicles and Light Trucks

The Katool KT-T810 is a professional-grade wheel clamp tire changer designed for daily use in automotive shops, tire centers, and fleet maintenance facilities. With a powerful 2.0 HP motor and a robust steel frame, the KT-T810 handles passenger vehicle and light truck tires efficiently while protecting alloy wheels through its rim-safe clamping system.

Key Features

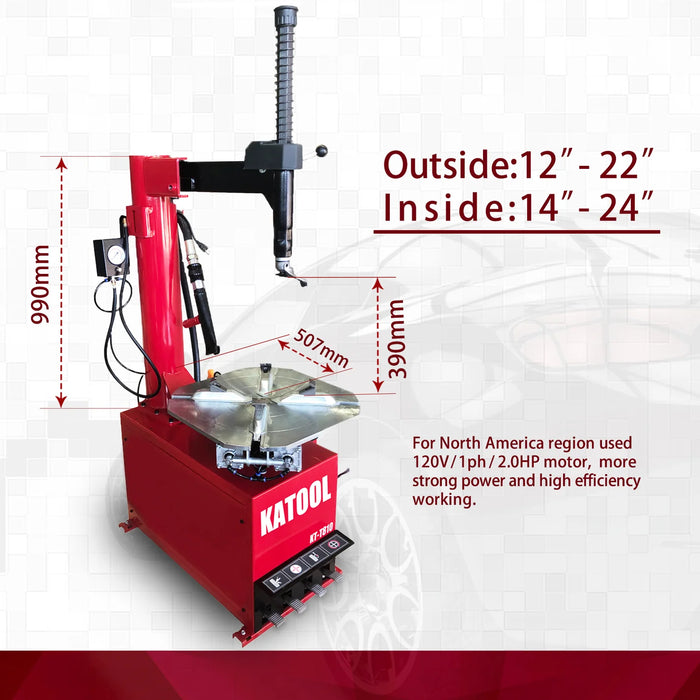

  • Wheel Clamp Design — Secure wheel clamping from the inside (14"–24") and outside (12"–22") accommodates a wide range of rim sizes without adapters.
  • 2.0 HP Motor — High-torque motor delivers consistent rotational speed (6.8 RPM) for efficient bead breaking and tire mounting.
  • Bead Breaker & Bead Seater — Integrated bead breaker and air bead seater assist with stiff sidewalls and low-profile tires.

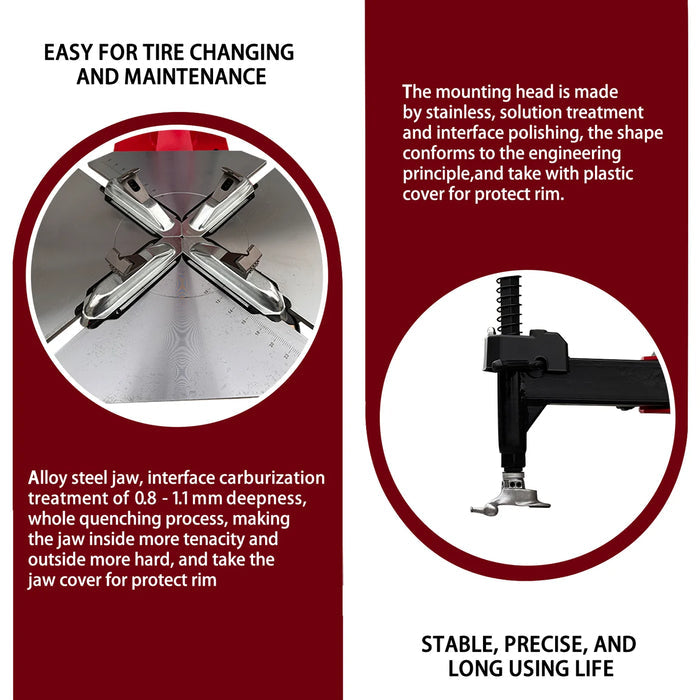

  • Rim Protection — Stainless steel mounting head and protective plastic covers on all contact surfaces prevent scratching or marring of alloy and chrome wheels.

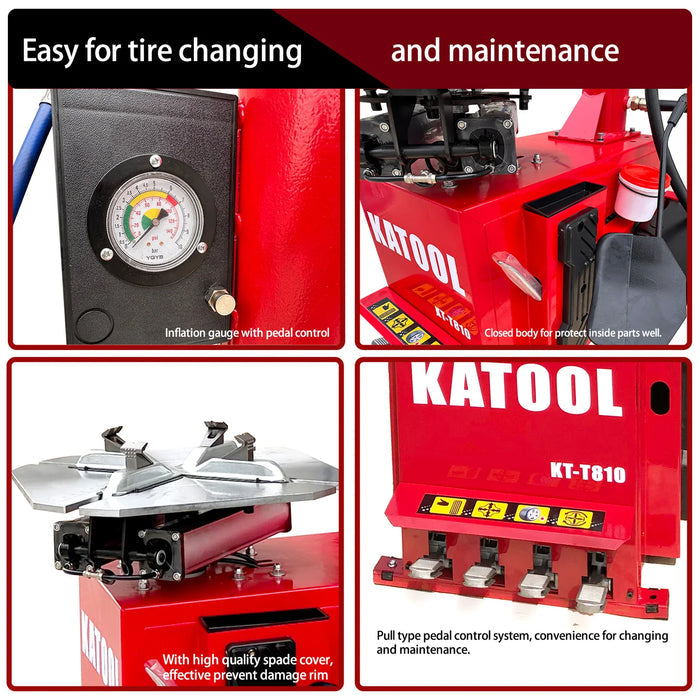

  • Foot Pedal Controls — Hands-free operation via foot pedals improves workflow speed and reduces operator fatigue.
  • Heavy-Duty Frame — Reinforced steel construction provides a stable base for high-volume shop use.

KT-T810 Specifications

Feature Specification
Outside Clamp Range 12" – 22"
Inside Clamp Range 14" – 24"
Max Wheel Diameter 41" (1,040 mm)
Max Wheel Width 15" (380 mm)
Motor Power 2.0 HP (1.5 kW)
Rotation Speed 6.8 rpm
Air Pressure Required 116 – 145 psi (0.8 – 1.0 MPa)
Power Supply 120V / 1 Phase
Net Weight Approx. 410 lbs (186 kg)

Manufacturer Warranty

All Katool products purchased through Site and Supply carry a 12-month manufacturer's warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
