Product Description

Product Overview

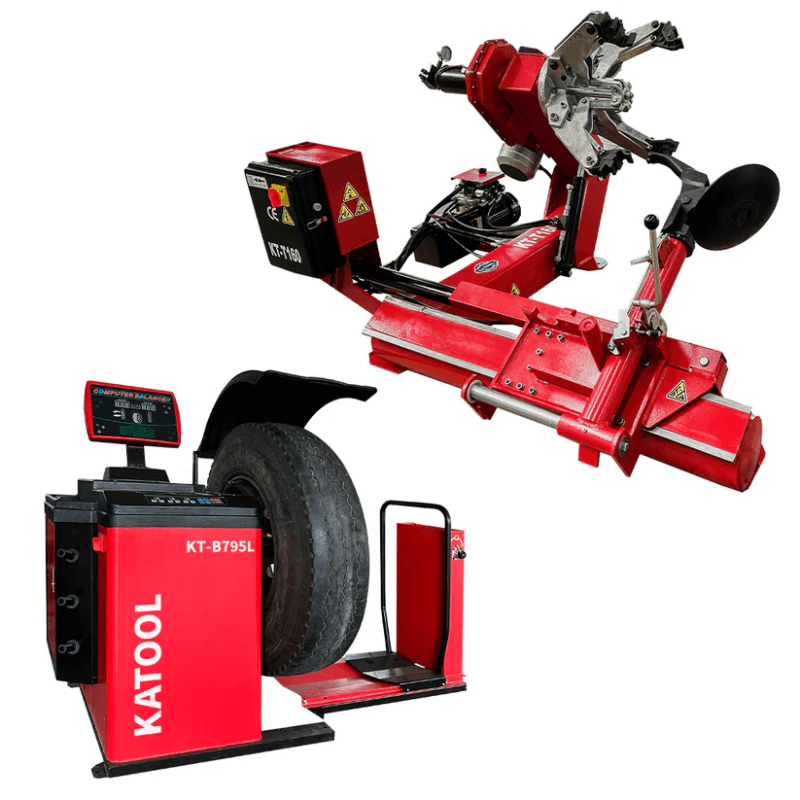

The Katool KT-T160 Tire Changer paired with the KT-B795L Wheel Balancer provides a comprehensive solution for servicing heavy-duty tires on trucks, buses, and industrial vehicles. Together, they deliver power, precision, and efficiency for high-demand shops.


Key Features

Katool KT-T160 Tire Changer

  • Broad Compatibility: Supports wheel diameters up to 62 inches and rim sizes from 14 to 26 inches, making it ideal for a wide range of large vehicles.

  • Electro-Hydraulic Power: Uses a strong electro-hydraulic system to ensure quick, accurate tire removal and installation.

  • Multi-Position Controls: Intuitive controls allow technicians to operate the machine from various positions for added safety and convenience.

  • Heavy-Duty Build: Constructed from robust materials designed to withstand rigorous, frequent use.

Katool KT-B795L Wheel Balancer

  • Wide Rim Range: Handles rim diameters from 10 to 28 inches and rim widths from 1.5 to 20 inches.

  • High Load Capacity: Capable of balancing wheels up to 440 lbs, suitable for heavy-duty applications.

  • Fast Operation: Provides quick measurement times to keep workflow efficient.

  • Easy-to-Use Display: Equipped with a bright, readable monitor for precise balancing and straightforward control.


Specifications

Katool KT-T160 Tire Changer

  • Max Wheel Diameter: 62"

  • Max Wheel Width: 30"

  • Rim Diameter: 14"–26"

  • Working Pressure: ≤130 bar

  • Power Supply: 220V, 1 phase

  • Pump Motor: 1.5KW (2.0 HP)

  • Gearbox Motor: 2.2KW (3.0 HP)

  • Net Weight: 570 kg / 1257 lbs

  • Oil Type: AW-46 or AW-32 (for colder climates)

Katool KT-B795L Wheel Balancer

  • Rim Width: 1.5"–20"

  • Rim Diameter: 13"–24"

  • Max Wheel Diameter: 51.18"

  • Max Wheel Weight: 150 kg

  • Operating Temperature: 0°C to –45°C

  • Power Supply: 220V

  • Noise Level: <65 dB

  • Measurement Time: 8 seconds

  • Footprint: Approximately 98–118"

  • Net Weight: 529 lbs


Manufacturer Warranty

All Katool products purchased through Site and Supply carry a 12-month manufacturer's warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
