Product Description

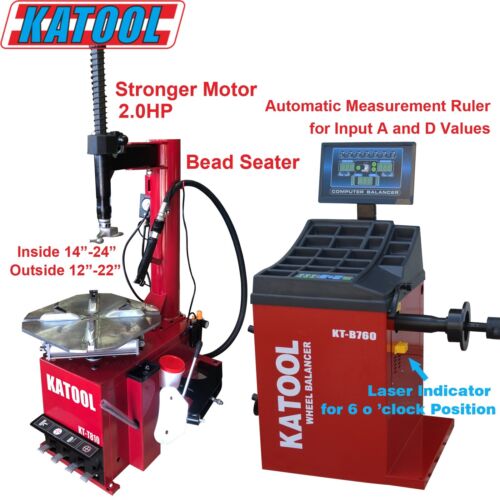

Katool KT810 & KT-B760 Tire Service Combo – Efficiency, Precision, Durability

Boost your tire service productivity with the Katool KT810 Tire Changer and KT-B760 Wheel Balancer combo. Engineered for professional shops, this high-performance duo delivers smooth tire changes, precise wheel balancing, and long-lasting reliability.

Key Benefits

  • Smooth Tire Changes: Alloy steel jaws, stainless steel mounting head, and ergonomic pull-type pedal for safe, easy operation.

  • Accurate Balancing: Automatic measurements, multiple balance modes, built-in diagnostics, and self-calibration ensure consistent results.

  • Built to Last: Heavy-duty construction and premium motors with pure copper windings guarantee durability and long life.

  • North American Ready: 120V/1PH motors designed for regional power standards.

  • Upgradeable Options: Compatible with wheel guard and extended shaft accessories (sold separately).

Features

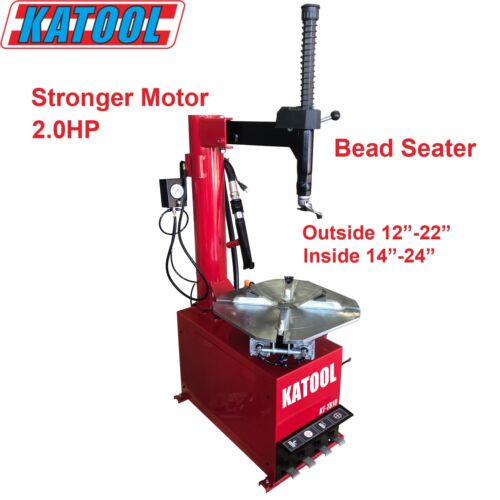

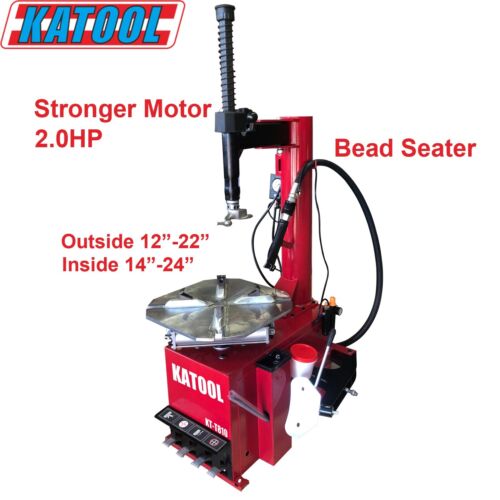

KT-T810 Tire Changer

  • Alloy steel jaws with carburization treatment for strength

  • Stainless steel mounting head and closed-body design

  • Pull-type pedal control system for user-friendly operation

  • Handles tires up to 41" diameter and 15" width

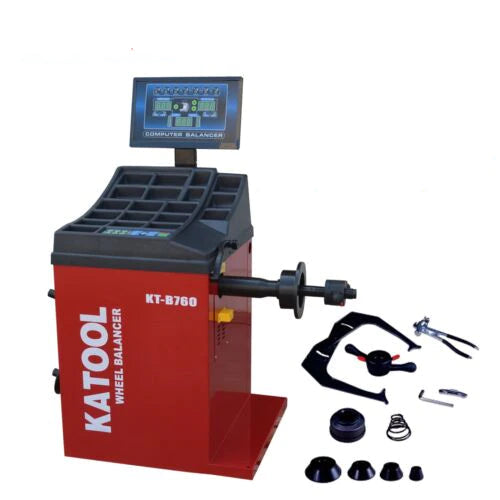

KT-B760 Wheel Balancer

  • Automatic measurement, various balance modes, and self-calibration

  • 3mm thick steel body with premium motor

  • All-in-one pressure sensor, 36mm shaft, and unit selection (oz/g, mm/in)

  • Optional wheel guard and longer shaft available

Specifications

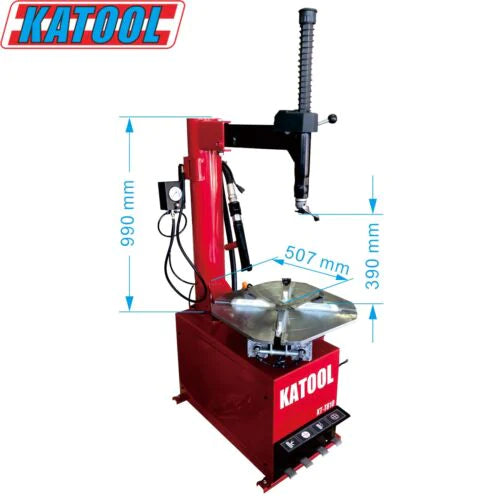

Tire Changer (KT-T810):

  • Max Wheel Diameter: 41" (1040 mm)

  • Max Wheel Width: 15" (380 mm)

  • Outside Clamp: 12"-22"

  • Inside Clamp: 14"-24"

  • Power Supply: 120V 1PH

  • Motor Power: 2.0HP / 1.5KW

  • Rotation Speed: 6.8 rpm

  • Air Pressure: 0.8-1.0 MPa (116-145 psi)

  • Net Weight: 410 lbs (186 kg)

Wheel Balancer (KT-B760):

  • Rim Diameter: Up to 30" (880 mm)

  • Wheel Width: 3"-12"

  • Balancing Speed: 180 rpm

  • Power Supply: 120V 1PH

  • Motor Power: 0.25 KW

  • Rim Center Hole Diameter: Up to 135 mm

  • Wheel Weight: Up to 65 kg

  • Balancing Accuracy: ±1 g

  • Measuring Time: 7 seconds


Manufacturer Warranty

All Katool products purchased through Site and Supply carry a 12-month manufacturer's warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
