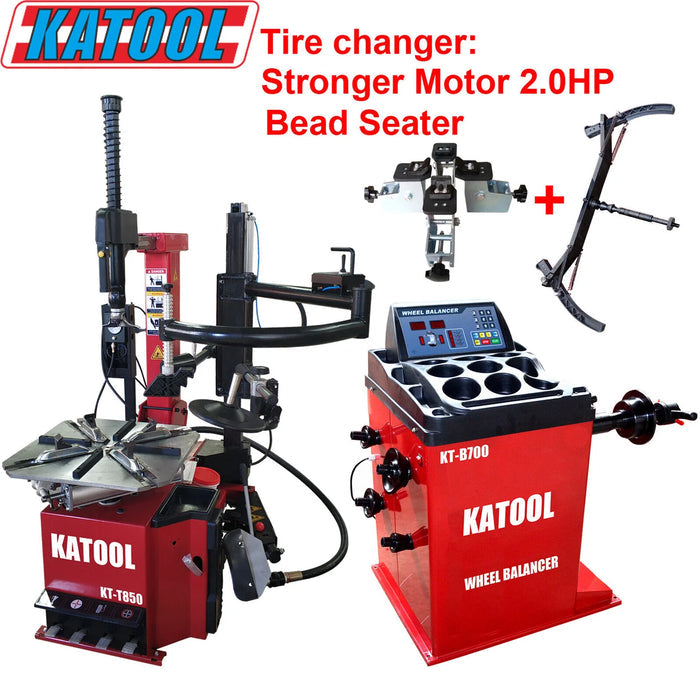

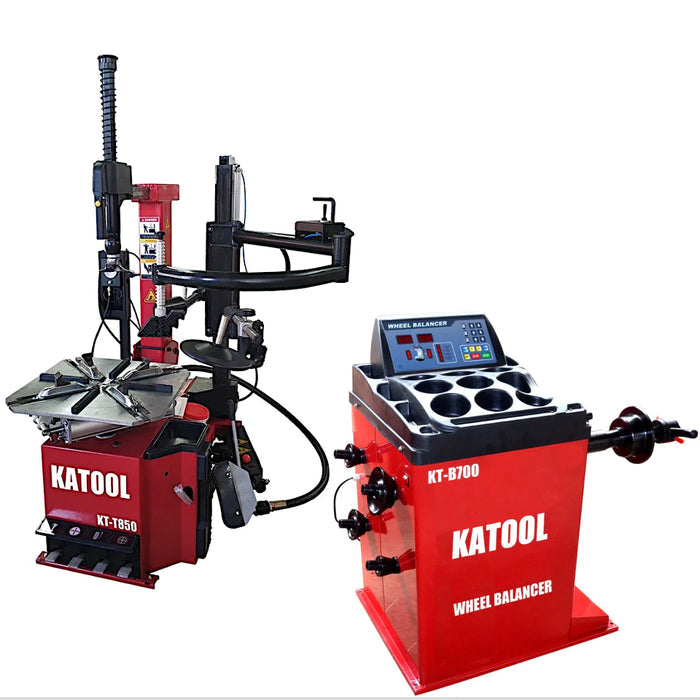

Katool KT-T850 & KT-B700 Combo – Complete Tire Service Solution

Upgrade your tire service with the Katool KT-T850 & KT-B700 Combo, a professional-grade package designed for busy shops. This combo pairs a tilt-arm tire changer with a high-precision wheel balancer, delivering efficiency, precision, and durability for all your tire service needs.

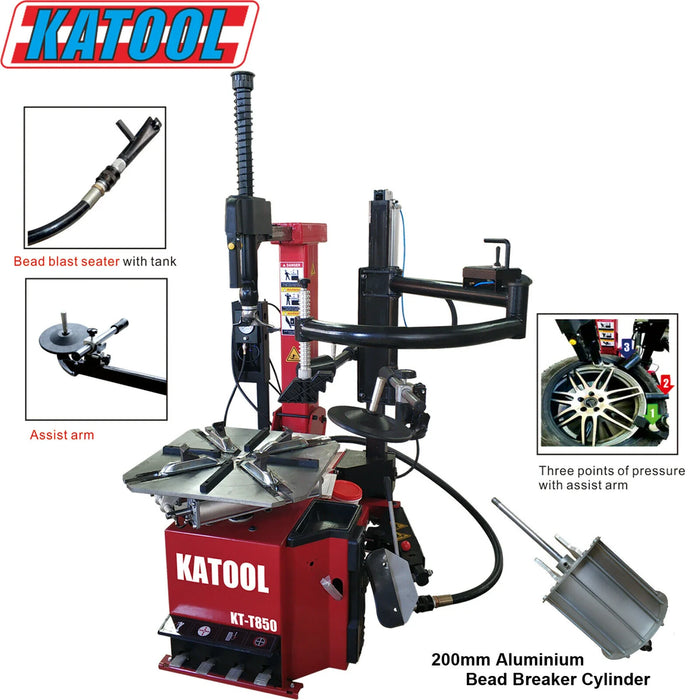

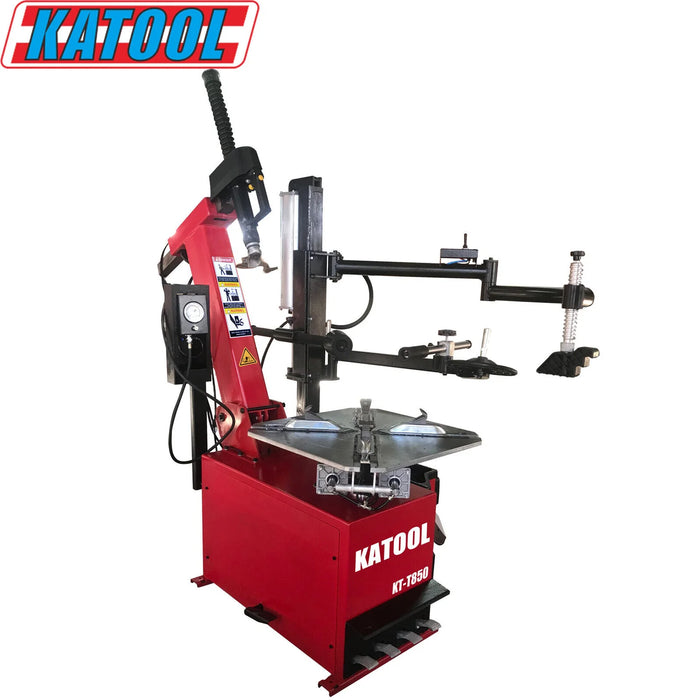

Effortless Tire Changing – KT-T850:

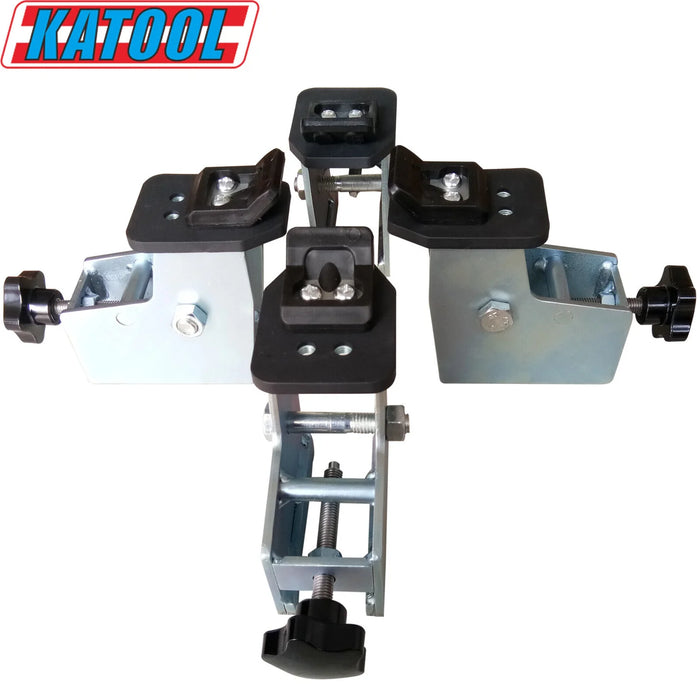

  • Reinforced Alloy Steel Jaw: Carburized alloy steel jaws provide exceptional strength while protecting rims.

  • Scratch-Resistant Mounting Head: Stainless steel mounting head with protective plastic cover prevents wheel damage.

  • Smooth Operation: Pull-type pedal control, powerful motor, and pneumatic system ensure efficient tire changes.

  • Versatile Functionality: Includes assist arms, bead blast seater, and bead breaker cylinder for a wide range of tire sizes.

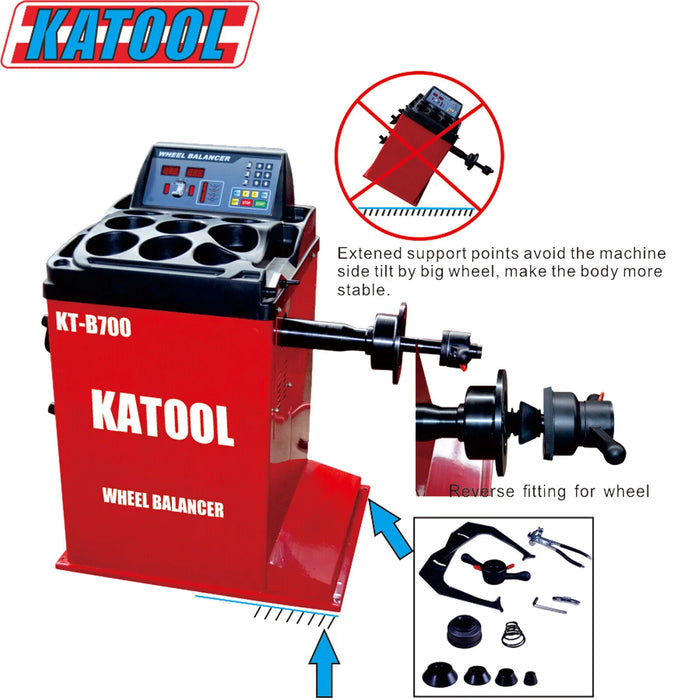

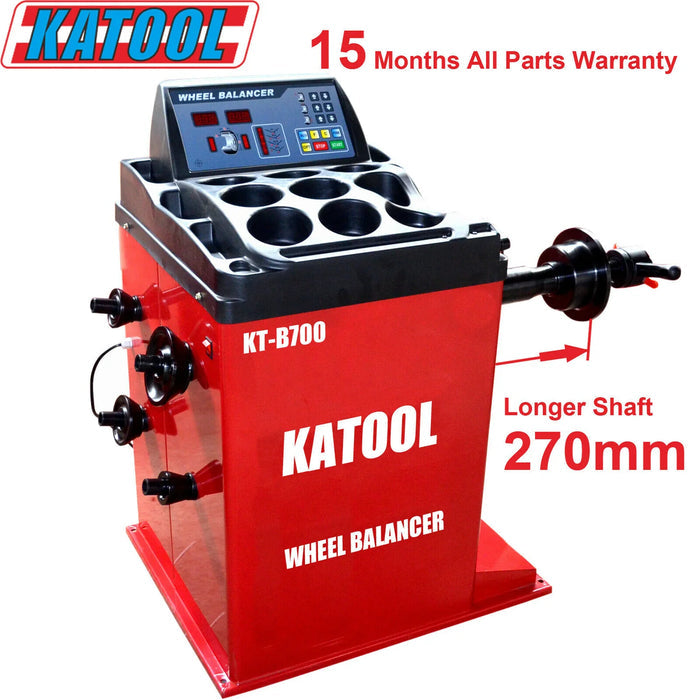

Precise Wheel Balancing – KT-B700:

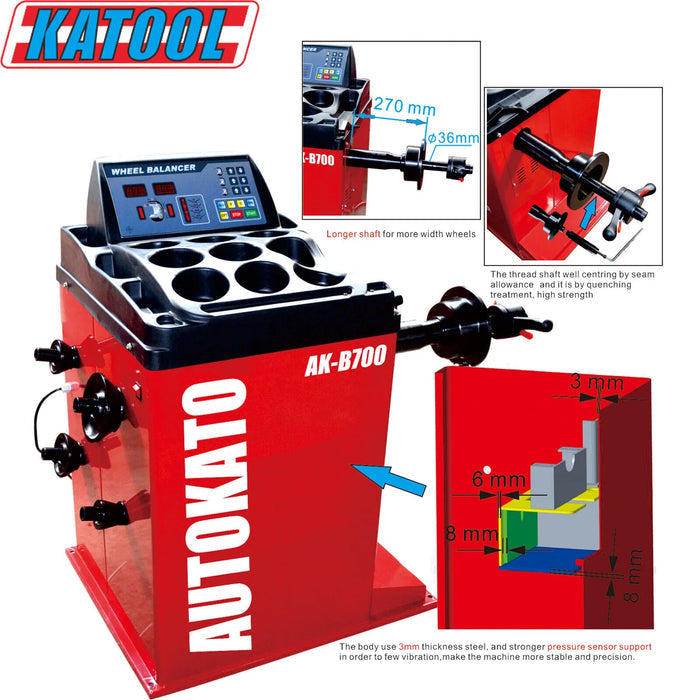

  • Durable Steel Construction: 3mm-thick steel body minimizes vibration for stable operation.

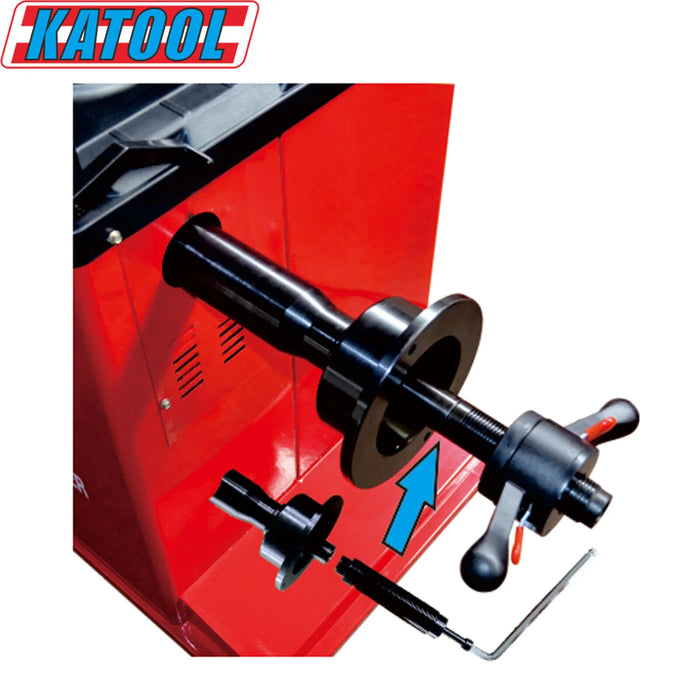

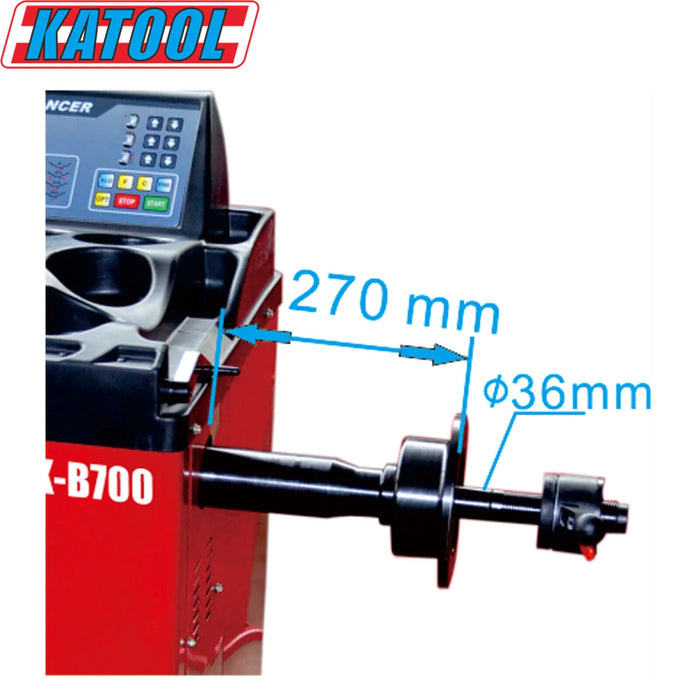

  • High-Precision Balancing: Advanced sensor support and quenched shaft thread provide accurate, reliable results.

  • User-Friendly Interface: Computer board offers multiple balance modes, self-calibration, and unit selection (oz/g, mm/inch).

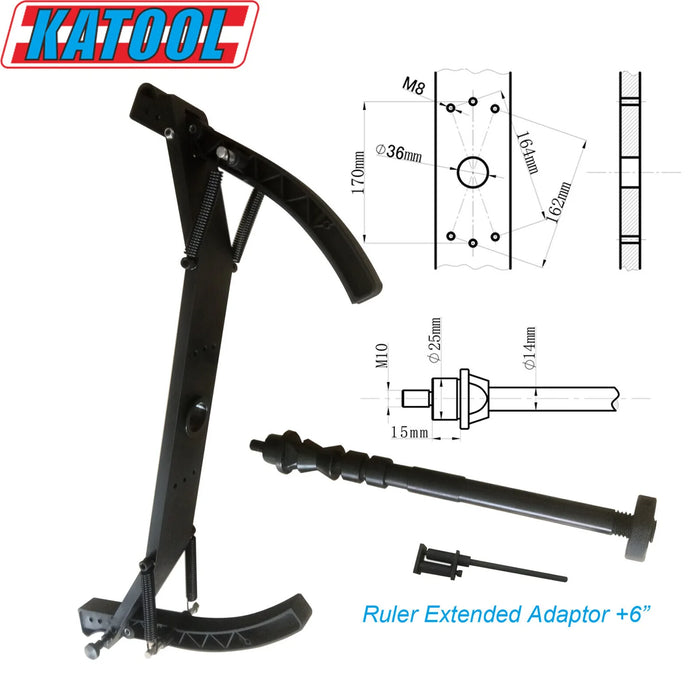

  • Optional Accessories: Compatible with wheel guards and extended shafts for wider wheels (sold separately).

Features:

KT-T850 Tire Changer:

  • Reinforced Alloy Steel Jaw with carburized treatment

  • Scratch-Resistant Stainless Steel Mounting Head with protective cover

  • Pull-Type Pedal Control & Pneumatic System

  • Assist Arms, Bead Blast Seater, and Bead Breaker Cylinder

KT-B700 Wheel Balancer:

  • Durable 3mm-Thick Steel Body

  • Precision Pressure Sensor Support & Quenched Shaft Thread

  • Multiple Balancing Modes, Self-Calibration, Unit Selection

  • Optional Wheel Guard & Extended Shaft

Specifications:

KT-T850 Tire Changer:

  • Max Wheel Diameter: 47" (1200 mm)

  • Max Wheel Width: 15" (380 mm)

  • Outside Clamp: 14" - 26" (356–660 mm)

  • Inside Clamp: 16" - 28" (406–711 mm)

  • Power Supply: 110V 1PH

  • Motor Power: 2.0 HP / 1.5 kW

  • Rotation Speed: 6.8 RPM

  • Air Pressure: 0.8–1.0 MPa (116–145 PSI)

  • Net Weight: 750 lbs (340 kg)

KT-B700 Wheel Balancer:

  • Rim Diameter: Up to 30" (880 mm)

  • Wheel Width: 3" - 12" (76–305 mm)

  • Balancing Speed: 180 RPM

  • Power Supply: 120V 1PH

  • Motor Power: 0.25 kW

  • Rim Center Hole Diameter: Up to 5.31" (135 mm)

  • Wheel Weight: Up to 143 lbs (65 kg)

  • Balancing Accuracy: ±1g

  • Measuring Time: 7 seconds


Manufacturer Warranty

All Katool products purchased through Site and Supply carry a 12-month manufacturer's warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
