Product Description

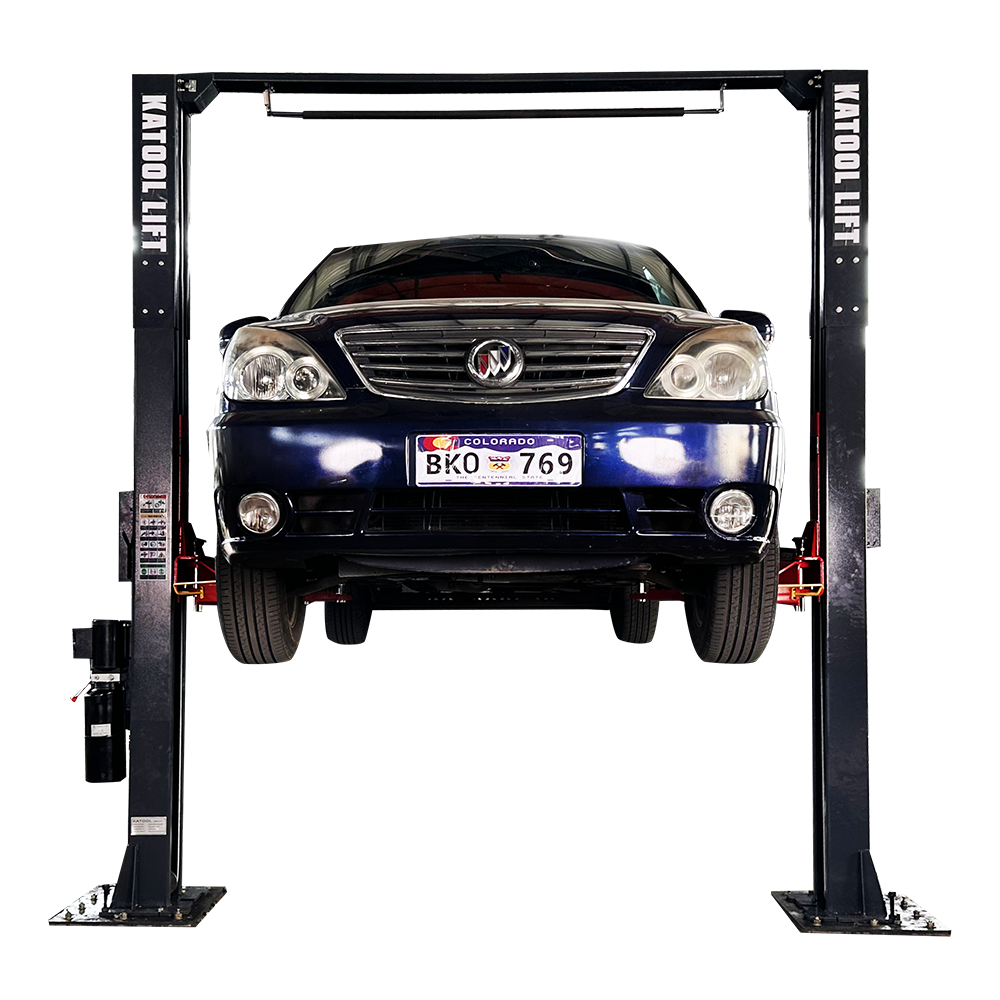

The KT-AM120SD is the most fully-specified two-post lift in Katool's mid-range two-post range: 12,000 lbs, clear floor, asymmetric arms, direct drive, single-point release, 4.0 HP motor and twelve lock positions. If you are outfitting a bay you expect to run hard for the next decade, this is the one we would put in it.

Key Features

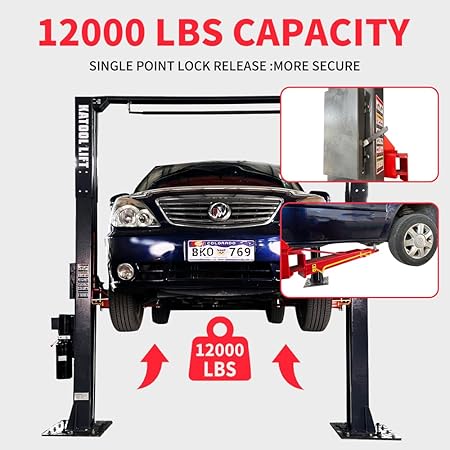

  • 12,000 lb Capacity - Cars, trucks and SUVs including heavier fleet vehicles.
  • Asymmetric Arms + Clear Floor - Better door clearance and nothing crossing the bay floor.
  • 12 Locking Positions - Fine height control for whatever the job requires.
  • Single-Point Lock Release - Faster cycle times between vehicles.
  • 4.25" Minimum Pad Height - Low-clearance and lowered vehicles still fit.
  • 4.0 HP Motor on 220V - Commercial-duty power unit sized for all-day use.

Specifications

Feature Specification
Lifting Capacity 12,000 lb
Lift Configuration Clear floor / asymmetric arms

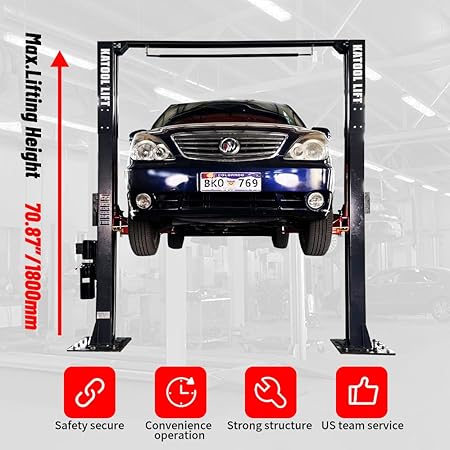

Max. Lifting Height 70.87" / 1,800 mm
Min. Lifting Height 4.25" / 110 mm
Overall Height 143.7" / 3,650 mm
Drive-Thru Clearance 94"
Motor Power 4.0 HP
Power Requirements 220V / 60Hz / 1PH
Locking Positions 12
Product Weight 1,369 lb

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
