Product Description

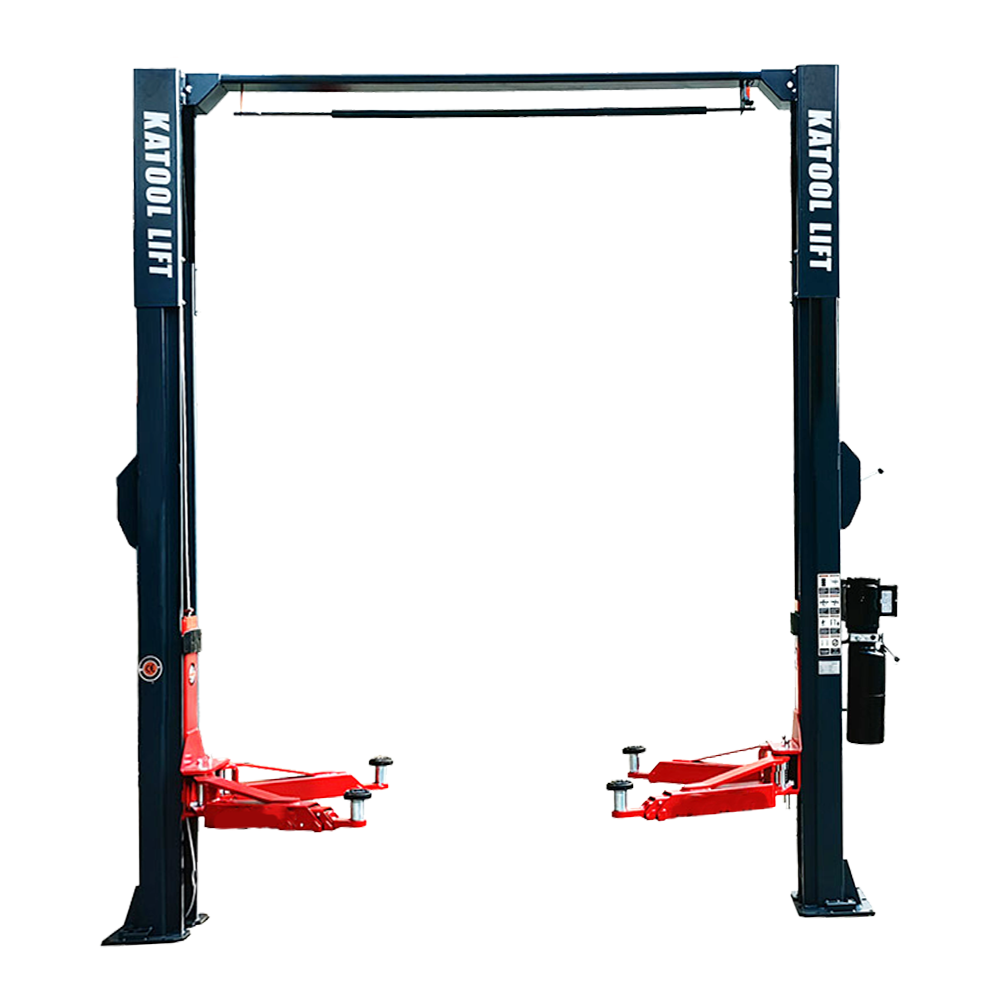

Asymmetric arms exist for one reason: getting the driver out of the car after it is on the lift. The KT-AS110D rotates the columns and runs shorter front arms so doors open clear of the posts - a small design change that your techs will notice on every single vehicle. Add direct-drive cylinders and single-point lock release and this is one of the easiest lifts to live with day to day.

Key Features

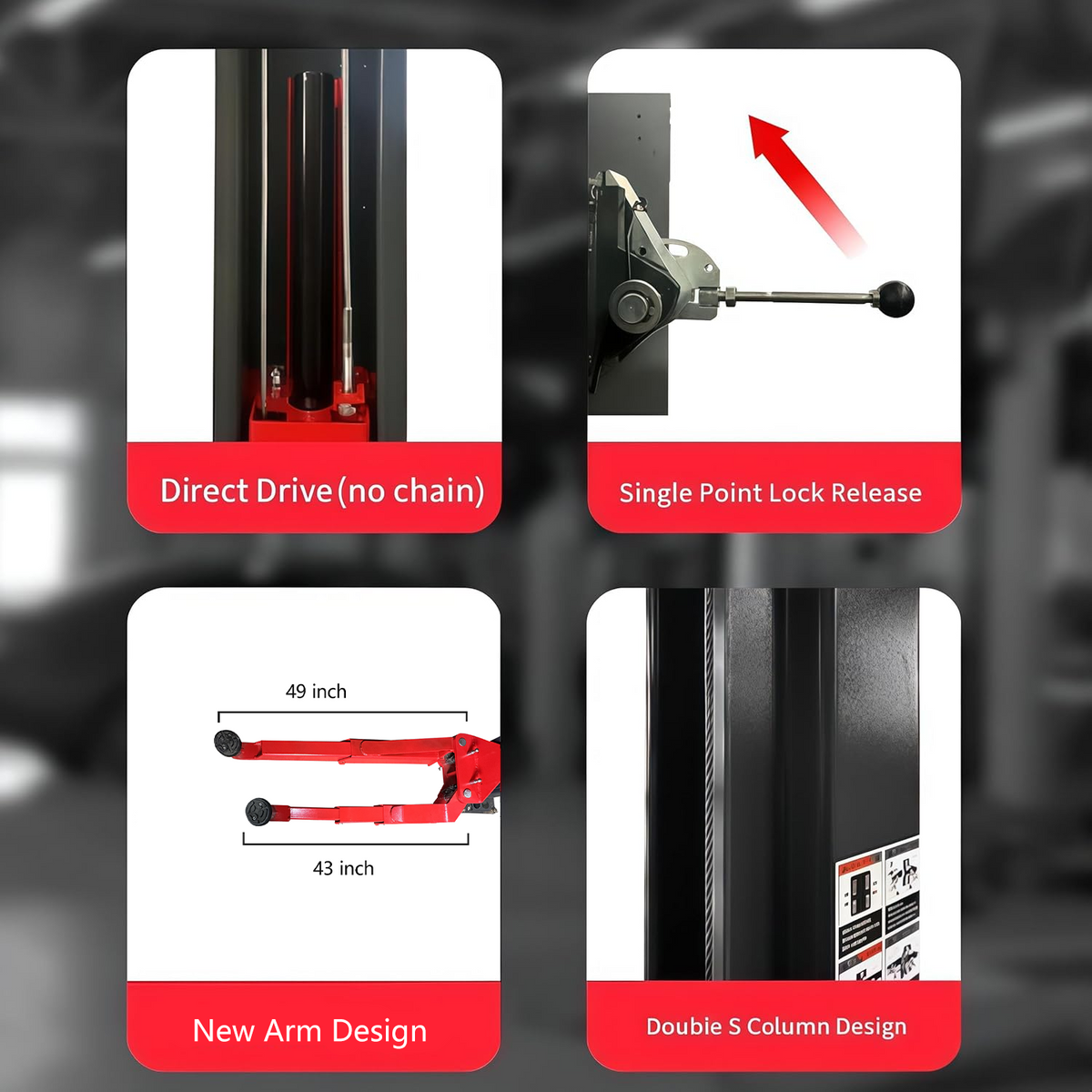

  • Asymmetric Arm Geometry - Vehicle sits rearward so doors clear the columns on entry and exit.
  • Single-Point Lock Release - One control drops all locks. No walking around the bay.
  • Direct-Drive Hydraulic Cylinders - Fewer wear components than chain-over-sheave designs.
  • 11,000 lb Capacity - Full coverage of cars, SUVs, vans and light trucks.
  • 3.74" Minimum Height - The lowest pad height in Katool's two-post lineup.
  • Adjustable Extension Adapters - 3.94" to 6" adjustment range included.

Specifications

Feature Specification
Lifting Capacity 11,000 lb / 4,990 kg
Max. Lifting Height 70.75" / 1,800 mm
Min. Height 3.74" / 95 mm
Overall Height 141.25" / 3,587 mm
Overall Width 134.65" / 3,420 mm
Outside Columns 120.4" / 3,058 mm
Inside Columns 109.37" / 2,778 mm
Drive-Thru Clearance 99.61" / 2,530 mm
Motor 220V / 60Hz / 1PH (110V optional)
Net Weight 1,323 lb / 600 kg
Extension Adapters 3.94" to 6" adjustable
Certification CE Approved (115% dynamic / 150% static)

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
