Product Description

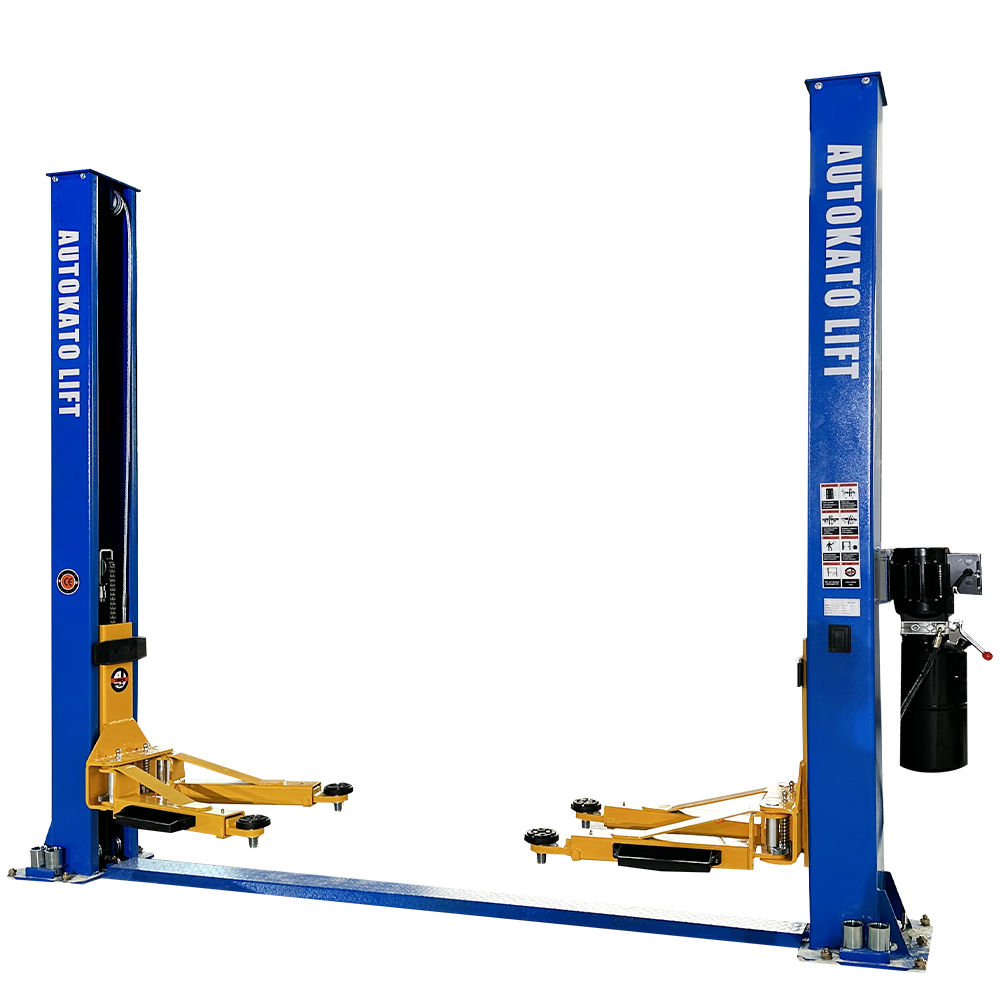

If you are pricing out a 10,000 lb two-post lift and want the lowest entry point Katool builds, the KT-H105 is it. It is a base-plate column design with a genuinely low 3.9 in minimum pad height, which matters more than most buyers expect - it is the difference between servicing a lowered car and sending it down the road.

Key Features

  • 10,000 lb Capacity - Rated for cars, SUVs, vans and light trucks in daily service.
  • 3.9" Minimum Pad Height - One of the lowest in its class, so lowered and low-clearance vehicles still get on the arms.
  • Base-Plate Column Structure - Adds rigidity and removes the overhead crossbar for low-ceiling bays.

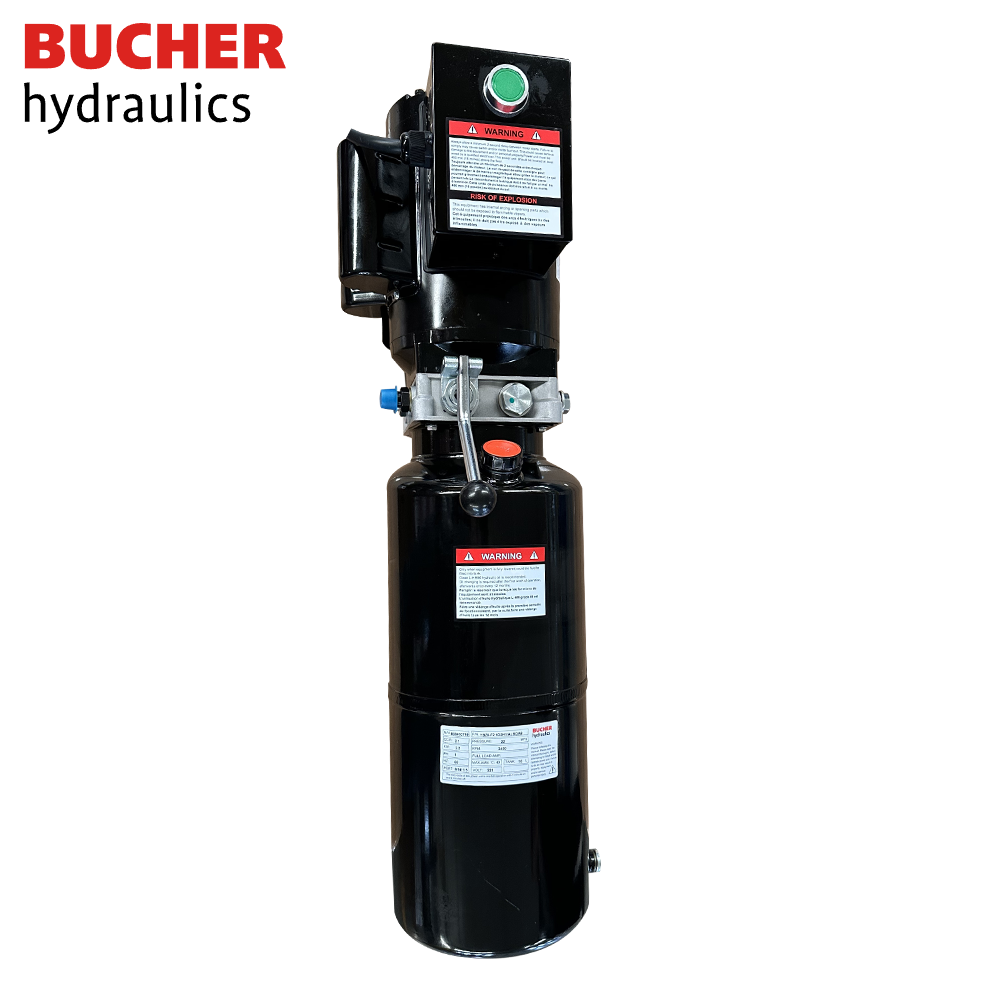

  • Twin Hydraulic Chain-Drive Cylinders - Smooth, balanced travel with no shudder under load.
  • Manual Release From Either Column - Lock release reachable from both sides of the bay.
  • 98.4" Drive-Thru Clearance - Wide enough for dually mirrors and full-size vans.

Specifications

Feature Specification
Lifting Capacity 10,000 lb / 4,500 kg
Max. Lifting Height 70.8" / 1,800 mm
Minimum Height 3.9" / 100 mm
Overall Height 110.9" / 2,818 mm
Overall Width 140.4" / 3,565 mm
Outside Column Width 124.8" / 3,170 mm
Inside Column Width 110.2" / 2,800 mm
Drive-Thru Clearance 98.4" / 2,500 mm
Front Arm Reach 29.5" - 46" (2-stage)
Rear Arm Reach 35.4" - 58.3" (2-stage)
Motor 220V / 60Hz / 1PH / 2.2 kW
Net Weight 1,257 lb / 570 kg
Certification CE Approved (115% dynamic / 150% static)

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
