Product Description

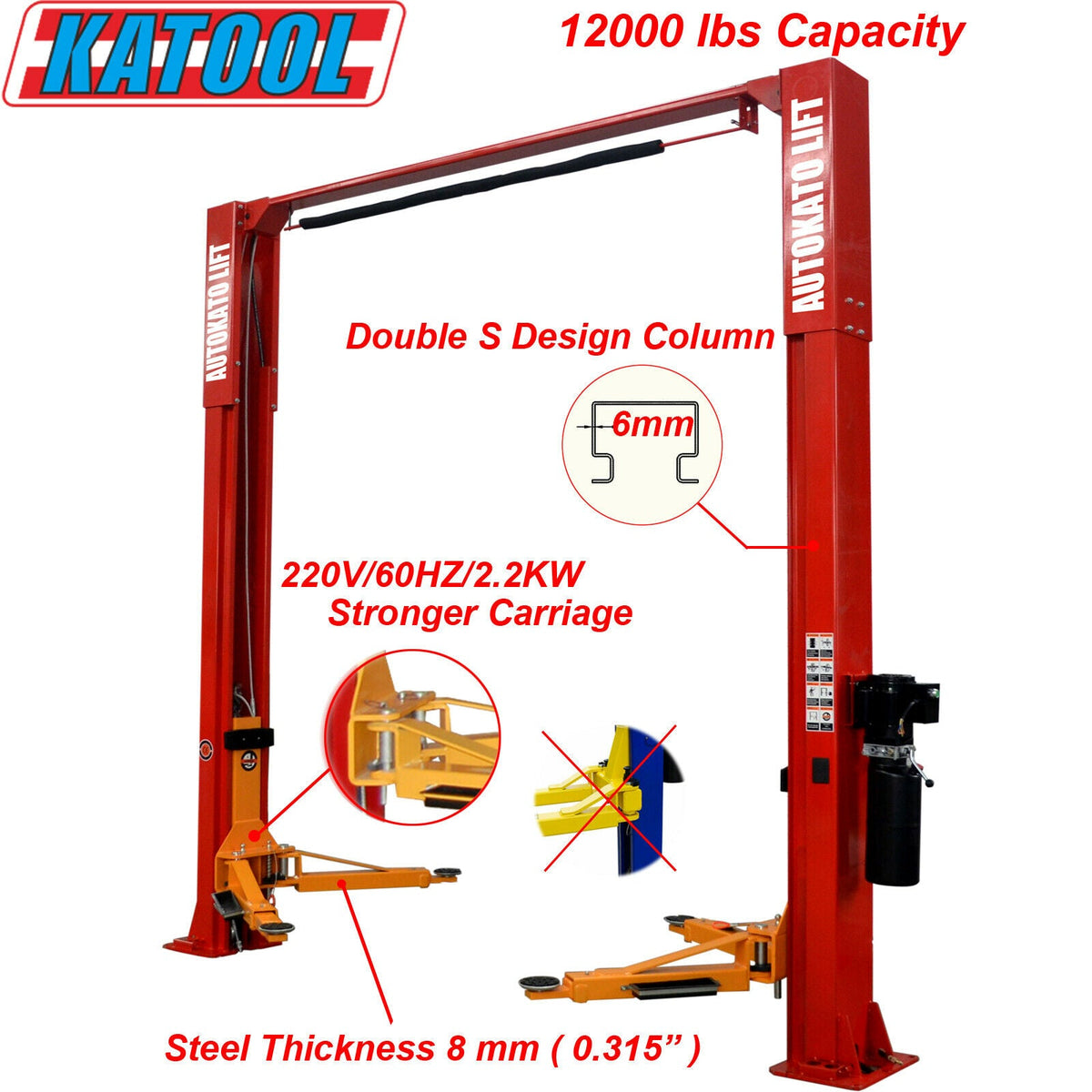

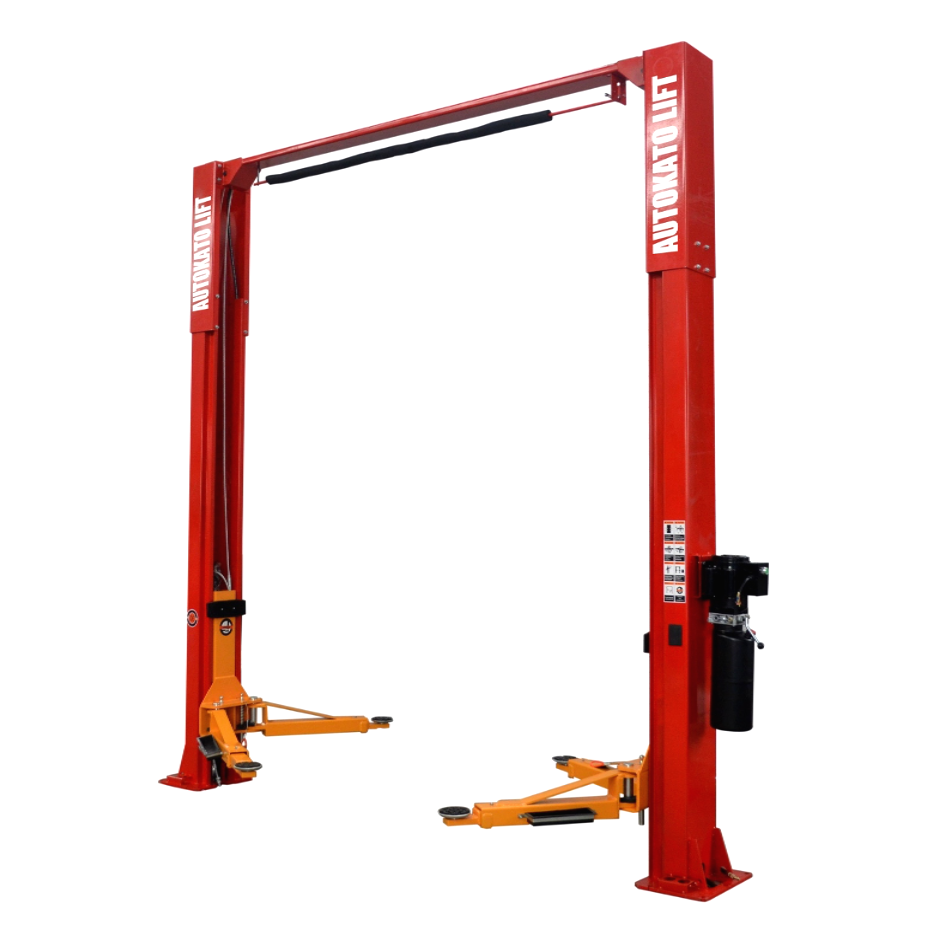

The KT-M120 is the widest lift in Katool's clear-floor two-post line. The step up from the M110 is not just capacity - it is column spacing and drive-through clearance, which is what actually determines whether a dually or a long-wheelbase van fits your bay. If you service fleet vehicles, measure your bay against these numbers before you buy anything smaller.

Key Features

  • 12,000 lb Capacity - The largest in the clear-floor M-series, sized for trucks and commercial vans.
  • 117.75" Drive-Through - Widest clearance in the range for oversized vehicles.
  • Clear-Floor Layout - No obstruction between the columns at any point.
  • Synchronized Dual Chain-Drive - Both carriages track together throughout the lift cycle.

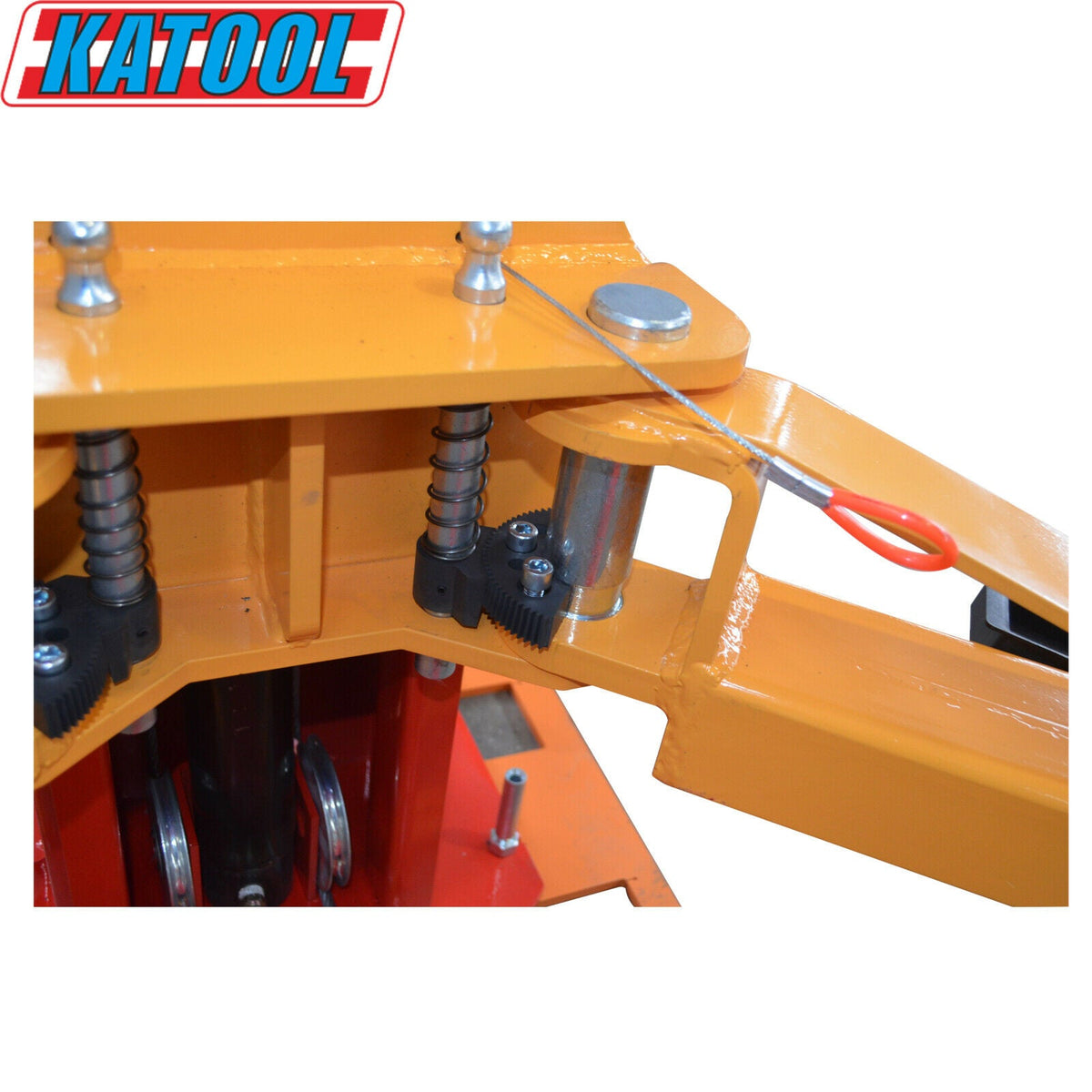

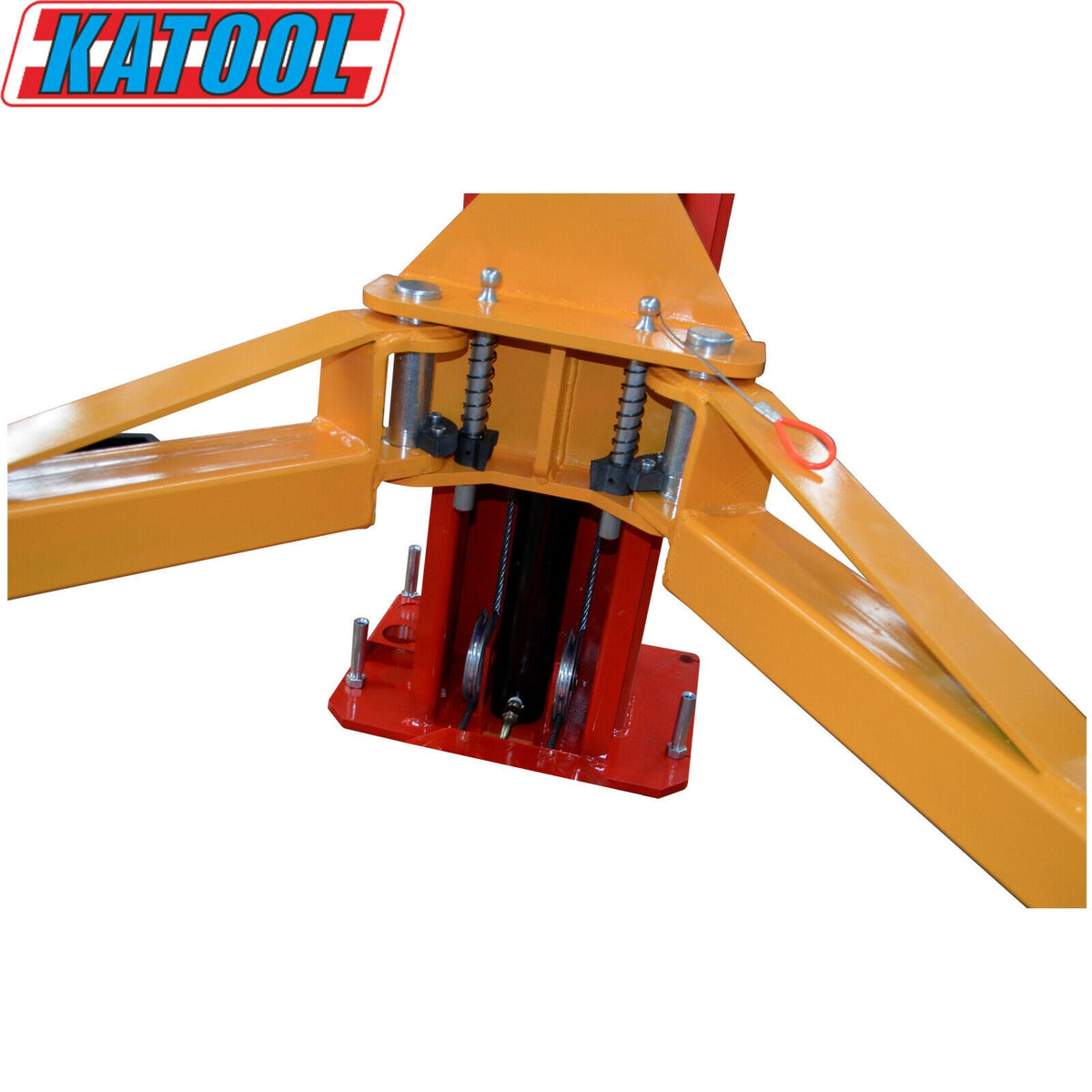

  • Manual Lock Release Each Column - Standard symmetric arm configuration.
  • Complete Accessory Package - +30 mm and +120 mm adapters, door-protection pads, overhead shutoff bar, tool tray and guardrails.

Specifications

Feature Specification
Rated Capacity 12,000 lb / 5,500 kg
Max. Lifting Height ~70.75" / 1,800 mm
Minimum Pad Height ~4.25" / 110 mm
Overall Height ~166.75" / 4,235 mm
Overall Width ~165.5" / 4,204 mm
Inside Column Width ~130" / 3,390 mm
Drive-Through Clearance ~117.75" / 2,990 mm
Arm Reach (Front/Rear) Min ~31" / Max ~51" (2-stage)
Motor 220V / 60Hz / 1PH (110V available)
Net Weight ~1,500 lb / 680 kg

Choose Your Delivery Option

Every lift on this page is sold with two delivery choices. Select one under Option before adding to cart:

  • Pickup from Location — Collect from the nearest stocking warehouse at no freight charge. We confirm the pickup location and window after your order is placed.
  • Ship to My Address — LTL freight delivery to your address at the price shown for this option. No residential or liftgate surcharges are added after checkout. We contact you to schedule a delivery appointment.

Not sure which is right for your shop? Call us at +1 (567) 361-3447 and we will price it out with you.


Manufacturer Warranty

All Katool lifts purchased through Site and Supply carry a 3-year structural warranty on the columns and frame plus a 1-year all-parts warranty covering defects in materials and workmanship under normal use.

  • Covered: Manufacturing defects, faulty components, and mechanical failures under normal operating conditions.
  • Not Covered: Damage from improper use, lack of maintenance, unauthorized modifications, physical accidents, or normal wear and tear.
  • To Claim: Contact Site and Supply at support@siteandsupply.com or +1 (567) 361-3447. We coordinate with the manufacturer on your behalf.

Site and Supply is an authorized Katool dealer — your warranty is fully valid and manufacturer-backed.
